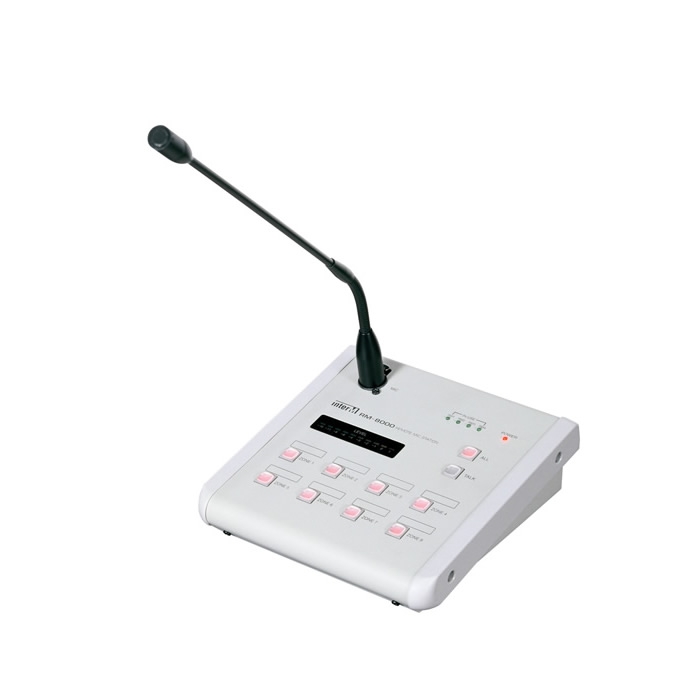

Inter-M - RM 8000 Audio Matrix Remote Microphone Station

Audio Output: 0dB(Balanced)

Audio Input

Paging & RM MIC & LM MIC: -50dB(Balanced)

BGM(Main & Local): -10dB(Balanced)

Tone Control (100Hz & 10kHz)

Paging MIC: ± 10dB

Audio Output: ± 12dB

Frequency Response

BGM: ± 3dB

MIC: ± 3dB

S / N

BGM: Better than 75dB

MIC: Batter than 65dB

T.H.D.

BGM: Less than 0.05%

MIC: Less than 0.05%

Priority Control: Paging MIC > DRP > RM1> RM2 > RM3 > RM4 > LM-8000 > Main BGM

Phantom Power: DC 24V

Serial Interface

Communication Speed: 9600bps

Communication Distance: Maximum 300m(UTP CAT%)

Operation Temperature: -10℃ ~ +40℃

Power Source: 100-120VAC or 220-240VAC; 50/60Hz (Supplied AC mains transformer depends on country requirements)

Weight(SET): 1.5kg / 3.2lb

Dimensions(SET): 200(W) x 70(H) x 206(D)mm 7.9(W) x 2.8(H) x 8.1(D)in
