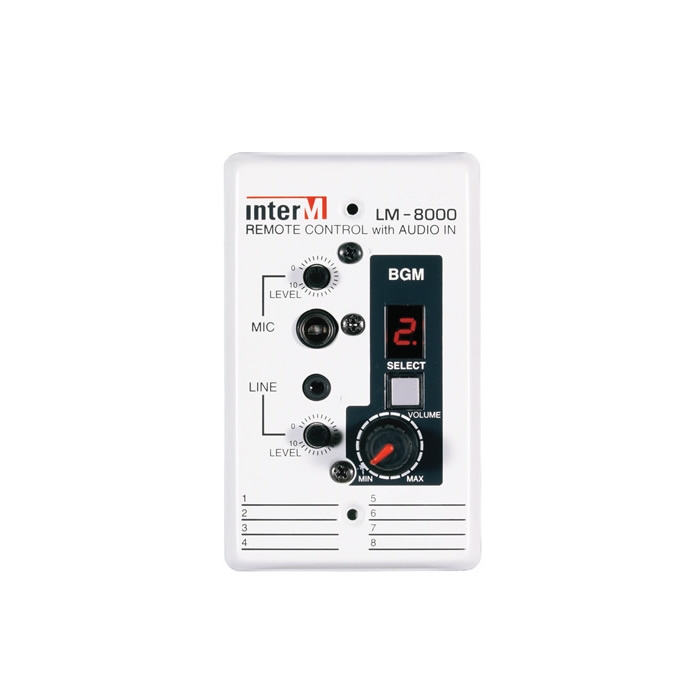

LM 8000 Audio Matrix Remote Audio Input Module

Name: LM 8000 Audio Matrix Remote Audio Input Module
Brand: Inter-M
SKU: 35008
Price: 7872.00 TRY
Availability: OutOfStock

Ürün Kodu : 35008

7.872 TL

Tükendi

LM – 8000 Audio Matrix Remote Audio Input Module

Teknik Özellikler:

Audio Output: 0dB(Balanced)
Audio Input
Paging & RM MIC & LM MIC: -50dB(Balanced)
BGM(Main & Local): -10dB(Balanced)
Tone Control (100Hz & 10kHz)
Paging MIC: ± 10dB
Audio Output: ± 12dB
Frequency Response
BGM: ± 3dB
MIC: ± 3dB
S / N
BGM: Better than 75dB
MIC: Batter than 65dB
T.H.D.
BGM: Less than 0.05%
MIC: Less than 0.05%
Priority Control: Paging MIC > DRP > RM1> RM2 > RM3 > RM4 > LM-8000 > Main BGM
Phantom Power: DC 24V
Serial Interface
Communication Speed: 9600bps
Communication Distance: Maximum 300m(UTP CAT%)
Operation Temperature: -10℃ ~ +40℃
Power Source: 100-120VAC or 220-240VAC; 50/60Hz(Supplied AC mains transformer depends on country requirements)
Weight(SET): 130g / 0.28lb
Dimensions(SET): 70(W) x 114(H) x 52(D)mm 2.8(W) x 4.5(H) x 2.0(D)in
