General
Product type
PA subwoofer
Type
Powered

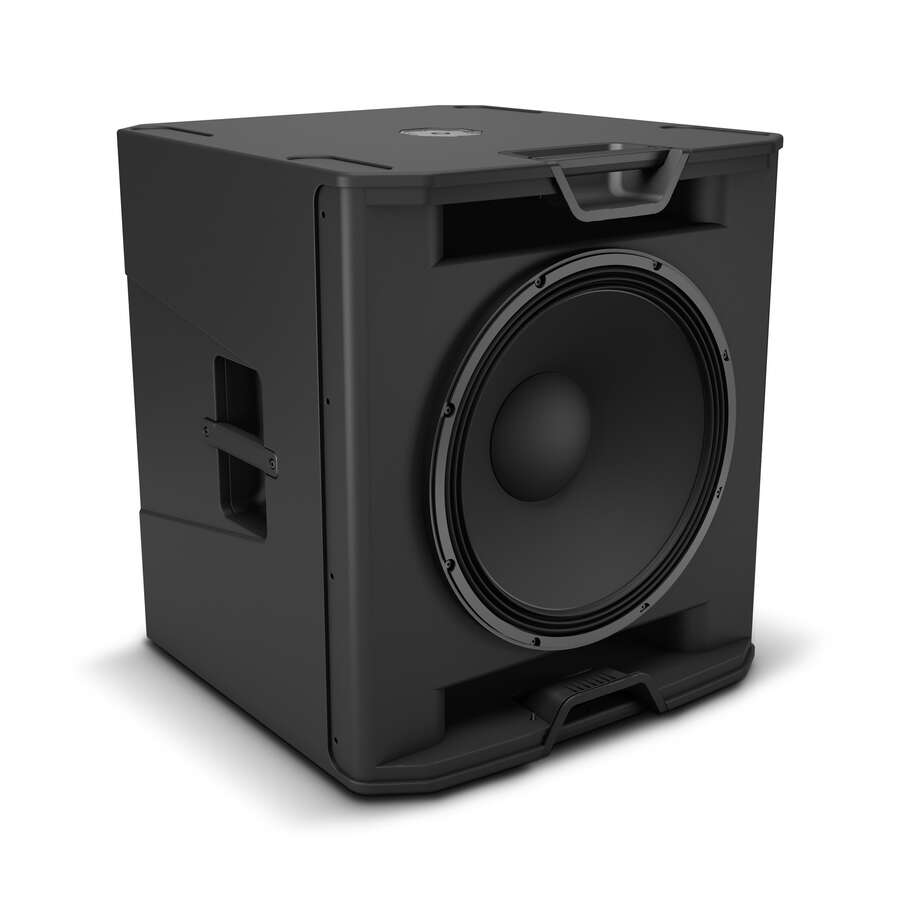

Low/mid Woofer dimensions
18 "
Woofer dimensions (mm)
457.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
4 "
Woofer voice coil (mm)
100 mm
Amplifier
Class D
System Power (RMS)
600 W
Peak power
2400 W
Frequency response (-10dB)
29Hz Preset depending
Max. SPL (Peak)
133 dB
Protection circuits
Excursion Limiter, over voltage, over-current, Peak Limiter, thermal overload

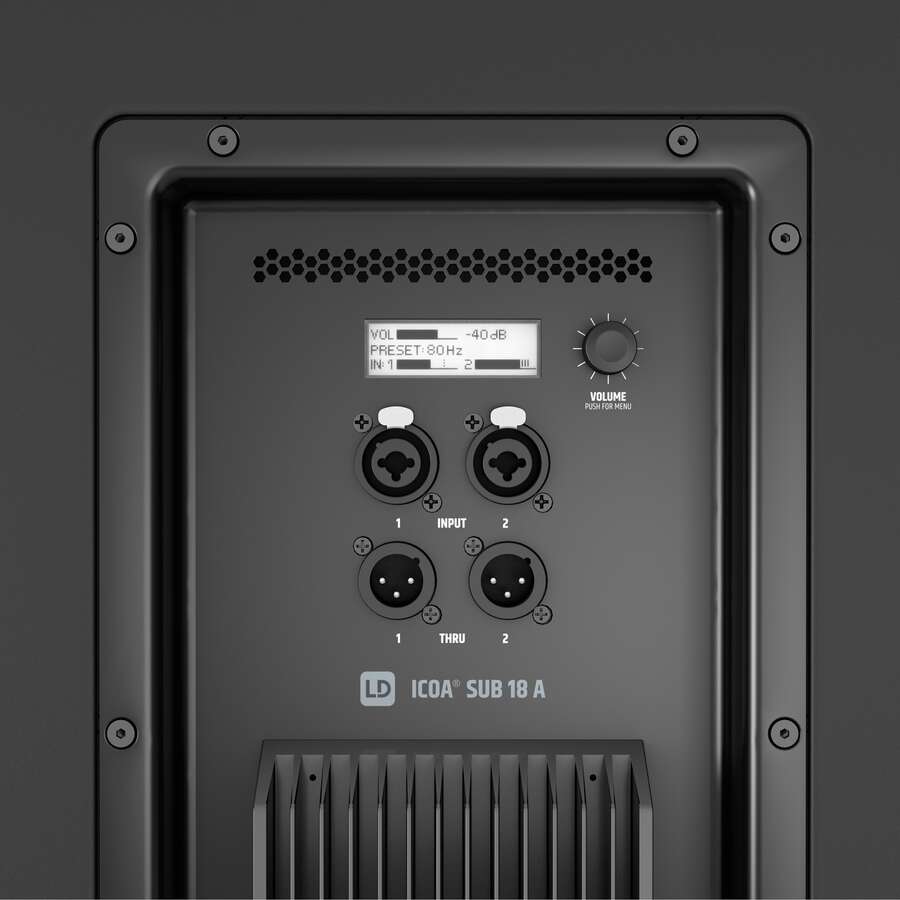

Controls
Push encoder
Indicators
LC display
Line inputs
2
Line input connectors
XLR/6.3mm jack combo jacks (balanced)
Line outputs
2
Line output connectors
XLR
Power supply
100 - 240 V
Power consumption (max.)
675 W
Operating Temperature
0 - 40 °C
Relative Humidity
< 60% (non-condensing)
Cabinet material
18 mm Multiplex
Cabinet surface
texture paint
Cabinet construction
Bass Reflex
Width
626 mm
Height
672 mm
Depth
637 mm
Weight
44,3 kg
