Maximum Height: 3.30 m (10.80 ft) / Maximum Load: 85 kg (187 lb)

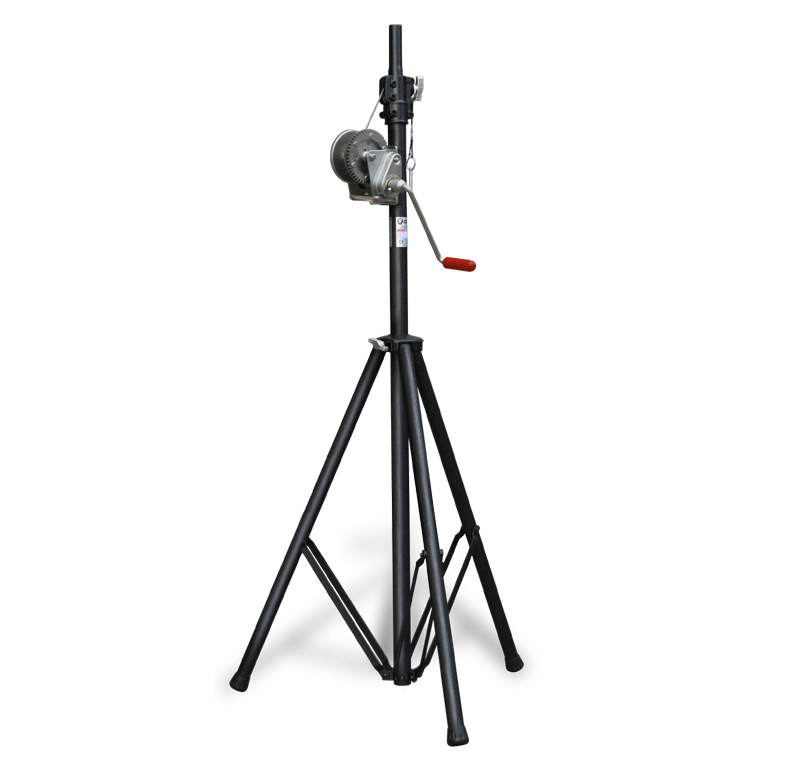

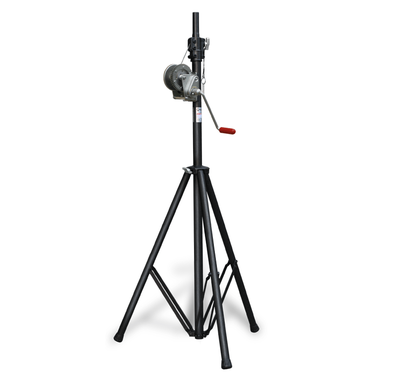

Compact telescopic lift for spotlights, specially designed for easy transportation when folded. It has been certified to lift loads of up to 85 kg to a maximum height of 3.30 metres and has a Ø 35 mm top shaft.
Its user friendly and compact design, with a folding and adjustable base, make the ELC-700 Lift ideal for any kind of temporary event, both outdoors and indoors.

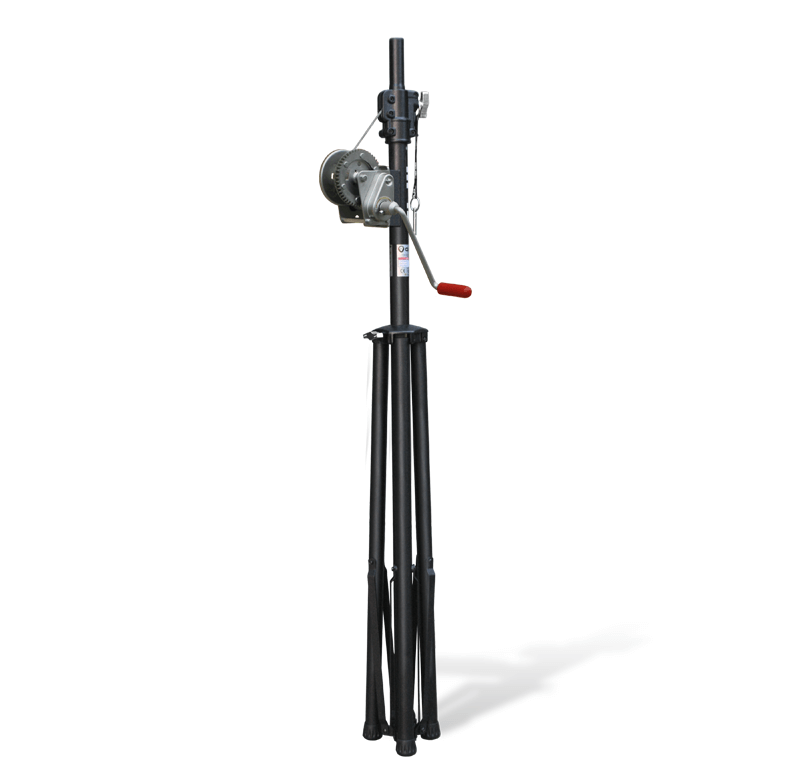

Folded dimensions:
* 260 x 320 x 1700 mm (with winch handle)
* 260 x 160 x 1700 mm (without winch handle)
| SPECIFICATIONS | ELC-700 |
| Maximum Height: | 3.30 m I 10.83 ft |
| Maximum Load: | 85 kg I 187 lb |

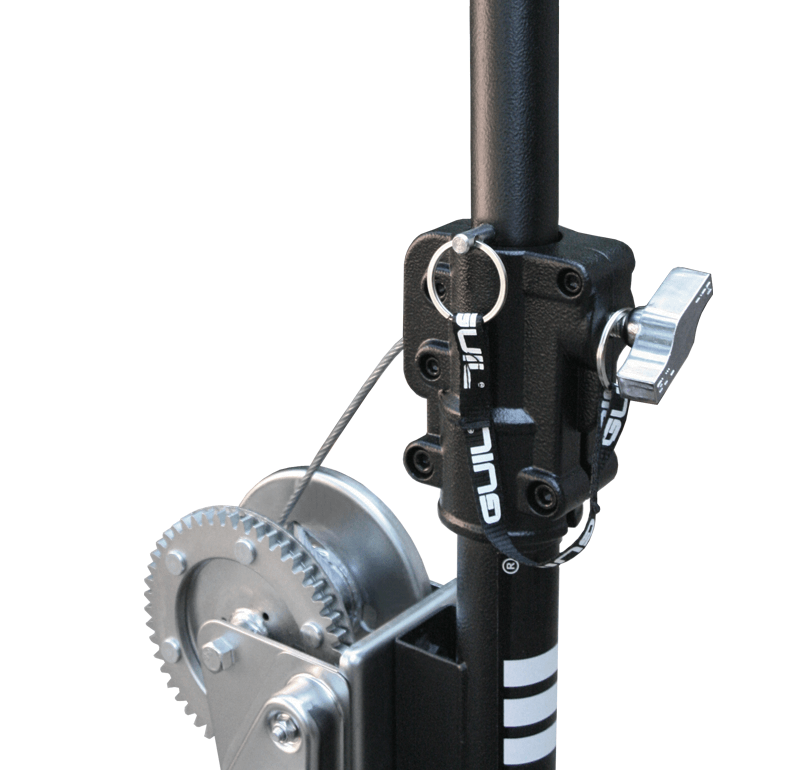

| Safety System: | ASB System-3 (Safety Blocking System) |
| Brake Winch: | 450 kg |
| Height stowed: | 1.70 m I 5.60 ft |
| Material: | Steel |
| Complies with Standards: | DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1) |
| DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE | |
| Net Weight: | 13 kg I 28.67 lb |
| Adaptors: | Ø 35 mm I Ø 0.11 ft |
