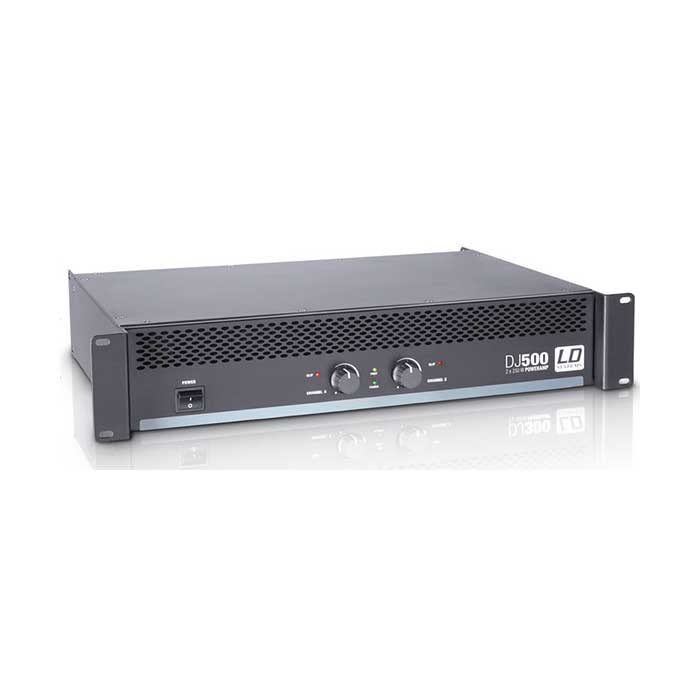

LD Systems - DJ 500

LD Systems DJ 500

Product number: LDDJ500

Product type: power amplifier

Type: 2-channel

Rated ouput power (1kHz @ 4 Ohms): 2 x 250W

Rated ouput power (1kHz @ 8 Ohms): 2 x 150W

Rated ouput power (1kHz @ 8 Ohms, bridged): 500W

Output circuitry: Class A/B

Frequency response: 20 - 20000Hz

THD: 0.05%

Gain: 30dB

Input sensitivity: 0.85V

Protection circuits: DC, soft start, thermal overload, over-current, short circuit

Controls: On / Off, volume, ground lift, mode

Indicators: protect (protection circuit engaged), clip, Power

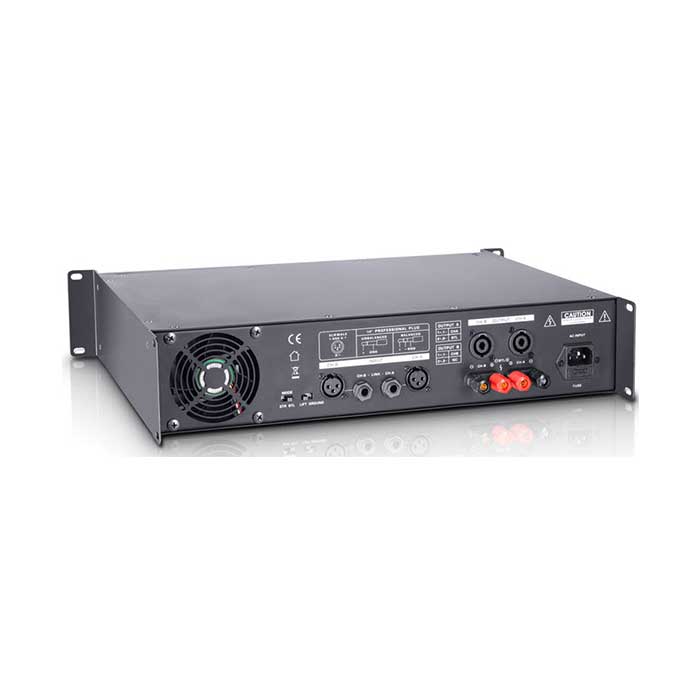

Line inputs: 2

Line input connectors: XLR, 6.3 mm Jack

Loudspeaker outputs: 2

Speaker output connections: Speakon compatible, Terminal posts

Cooling: fan

Operating voltage: 230 V AC

Width: 483mm

Height: 88mm

Depth: 298mm

Weight: 9kg
