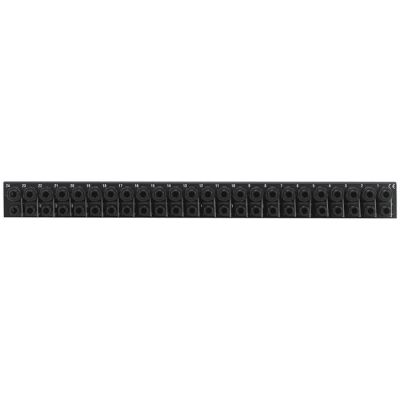

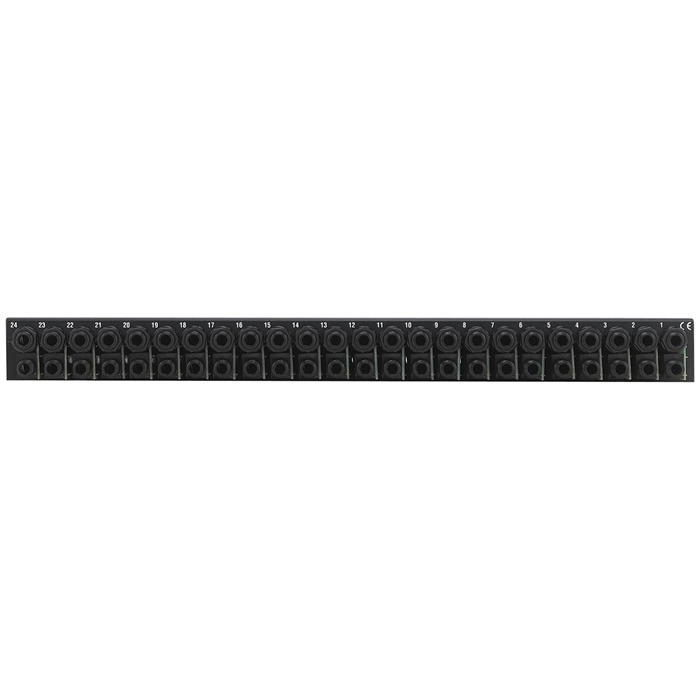

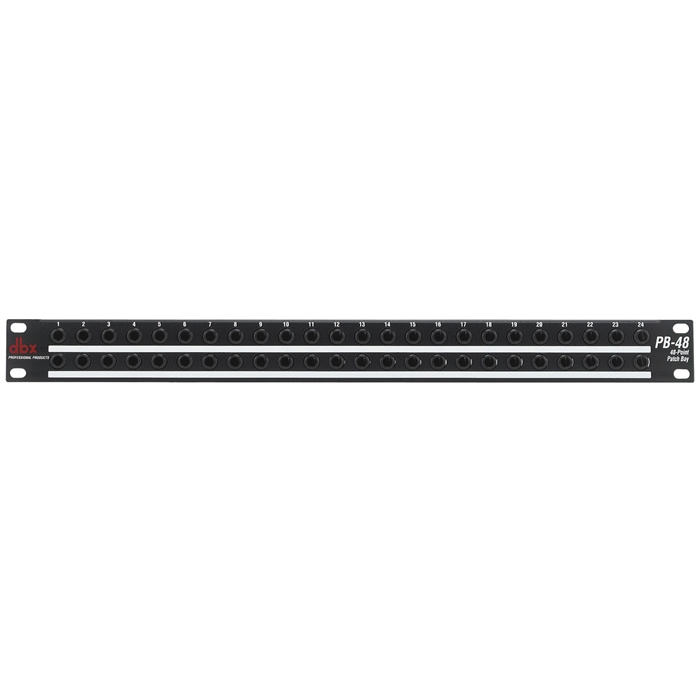

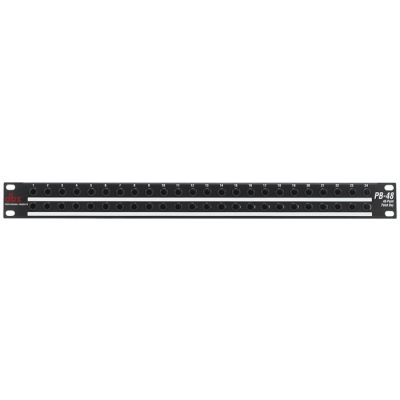

Dbx - PB48 48 Kanal Patchbay

Name: PB48 48 Kanal Patchbay
Brand: Dbx
SKU: T29228
Price: 5071.50 TRY
Availability: InStock

Paylaş:

Stok Kodu

T29228

Stok Durumu

Bilgi Alınız

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Beni Ara
Hızlı Mesaj
Öneri Kutusu
Tavsiye Et

PB48 48 Kanal Patchbay

Teknik Özellikler:
Input Connectors XLR (pin 2 hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced >50k ohm, unbalanced >25k ohm
Max Input >+22dBu balanced or unbalanced
CMRR >40dB, typically >55dB at 1kHz
Output Connectors XLR
Output Type Impedance-balanaced/unbalanced, RF filtered
Output Impedance Balanced 200 ohm, unbalanced 100 ohm
Max Output >+21dBu balanced/unbalanced into 2k ohms or greater
Bandwidth 20Hz to 20kHz, +/-0.5dB
Frequency Response < 3 Hz to > 90 kHz, +0/-3 dB
Signal to Noise Ratio Ref: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise (Stereo Mode) >94dB (Low Output), >91dB (High Output)
Signal-to-Noise (Mono Mode) >94dB (Low Output), >93dB (Mid Output), >91dB (High Output)
Dynamic Range > 106 dB, unweighted, any output
THD+Noise < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk < -80 dB, 20 Hz to 20 kHz
Crossover Frequencies (Stereo Mode) Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Frequencies (Mono Mode) Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Filter Type Linkwitz-Riley, 24 dB/octave, state-variable
Low cut Switch Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert Switch Inverts the phase at the output, one switch per output.
x1 / x10 Switch Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode Switch Selects stereo/mono and 2/3-way operation
LF Sum Switch Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode.
Indicators Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output)
Operating Voltage 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC50 HZ
Operating Temperature 32°F to 113°F (0°C to 45°C)
Power Consumption 15W
Power Connector IEC receptacle
Dimensions 1.75" H X 19" W X 6.9" D (4.4cm x 48.3cm x 17.5cm)
Unit Weight 3.7 lbs. (1.7 kg)
Shipping Weight 5.4 lbs. (2.5 kg)
Garanti Bilgisi

:

24 Ay

Ürün Etiketleri

ses sistemleri
