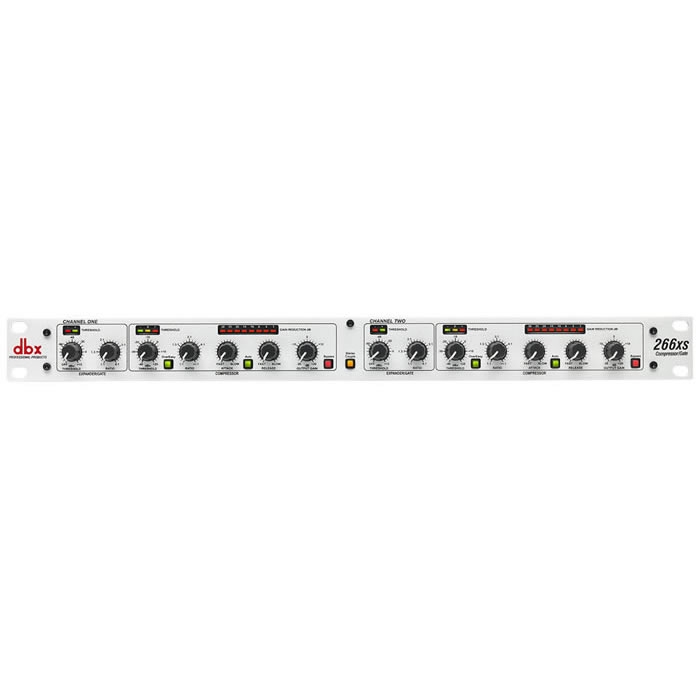

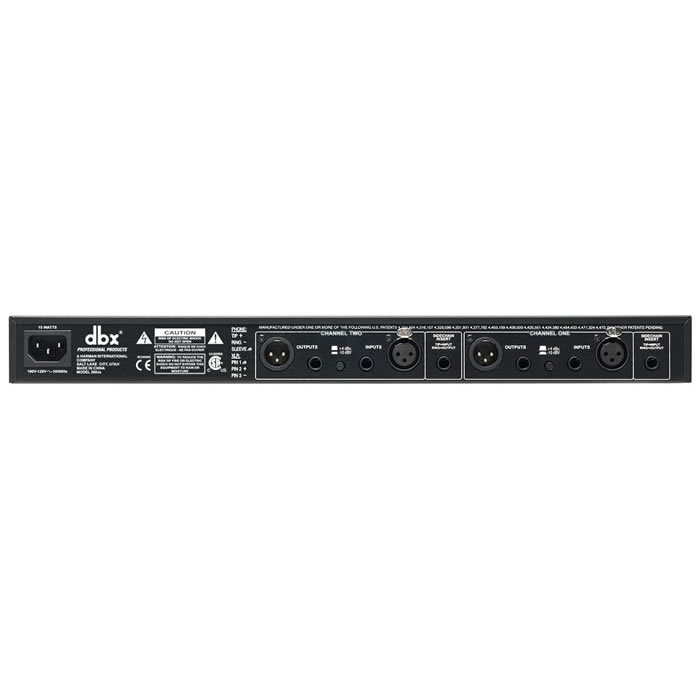

  • 266xs Compressor / Gate Sinyal İşleyici

    Teknik Özellikler:
    • Input Connectors 1/4" TRS and female XLR (pin 2 hot)
    • Input Type Electronically balanced/unbalanced, RF filtered
    • Input Impedance 40kΩ balanced/unbalanced
    • Max Input >+22dBu Balanced or Unbalanced
    • Output Connectors 1/4" TRS, female XLR (pin 2 hot)
    • Output Type Impedance-balanced/unbalanced, RF filtered
    • Output Impedance +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
    • Max Output >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
    • Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
    • Sidechain Impedance Tip = >10kΩ (Input), Ring = 2kΩ (Output)
    • Sidechain Max Input Level Tip = >+22dBu (Input)
    • Sidechain Max Output Level Ring = >+20dBu (Output)
    • Compressor Threshold Range -40dBu to +20dBu
    • Compressor Threshold Characteristic Selectable OverEasy® or hard knee
    • Compressor Ratio 1:1 to Infinity:1
    • Compressor Attack Time Scalable Program-Dependent AutoDynamic™
    • Compressor Release Time Scalable Program-Dependent AutoDynamic™
    • Expander/Gate Threshold Range -60dBu to +15dBu
    • Expander/Gate Ratio 1:1 to 4:1
    • Expander/Gate Attack Time <100µs
    • Expander/Gate Release Time Program-dependent
    • Bandwidth 0.35Hz - 90kHz, +0/-3dB
    • Frequency Response Flat: 20Hz-20kHz, +0, -0.5dB
    • Noise <-93dBu unweighted (22kHz measurement bandwidth)
    • THD+Noise Typically <0.2%; Any Amount of Compression @1kHz
    • IMD Typically <0.2% SMPTE
    • Dynamic Range >114 dB, unweighted
    • Interchannel Crosstalk <-95dB, 20Hz to 20kHz
    • CMRR >40dB, typically >55dB at 1kHz
    • Stereo Coupling True RMS Power Summing™
    • Power Consumption 15 Watts Maximum
    • Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
    • Operating Temperature 0°C to 45°C (32°F to 113°F)
    • Dimensions 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
    • Unit Weight 4.84 lbs (2.19 kg)
    • Shipping Weight 6.6 lbs (2.99 kg)
    • Reference 0dBu = 0.775Vrms
