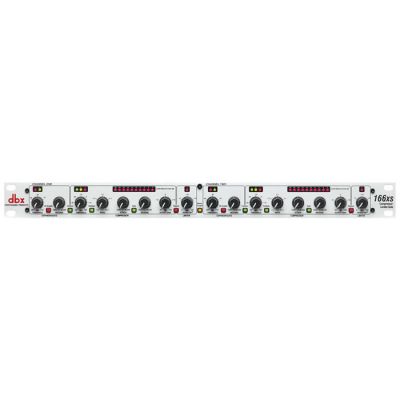

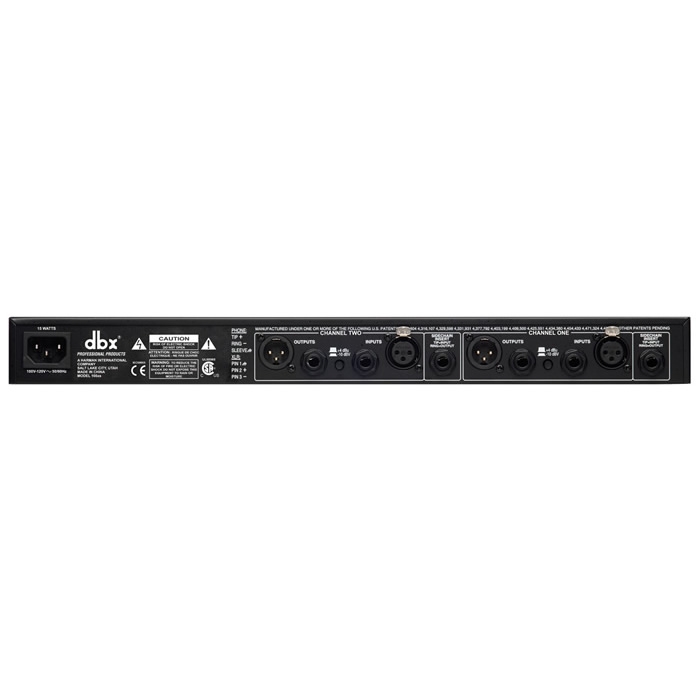

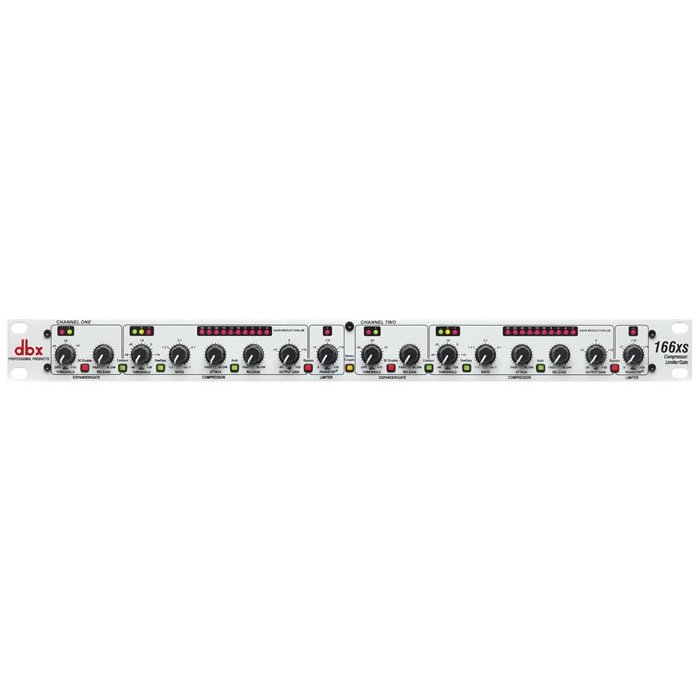

166xs Compressor / Limiter / Gate Sinyal İşleyici
Teknik Özellikler:- Input Connectors 1/4" TRS, female XLR (pin 2 hot)
- Input Impedance >50kΩ balanced, >25kΩ unbalanced
- Max Input >+24dBu, Balanced or Unbalanced
- Input Type Electronically balanced/unbalanced, RF filtered
- Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
- Sidechain Impedance Tip = >10kΩ (Input), Ring = 2kΩ (Output)
- Sidechain Max Input Level >+20dBu (tip/input); >+20dBu (ring/output)
- Output Connectors 1/4" TRS, female XLR (pin 2 hot)
- Output Impedance 120Ω balanced, >60Ω unbalanced
- Max Output +21dBu balanced/unbalanced into 2kΩ or greater; >+18 dBm balanced/unbalanced (into 600Ω)
- Frequency Response 20Hz - 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
- Noise <-90dBu, 22Hz to 22kHz, no weighting, unity gain
- THD+Noise Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz
- IMD Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction)
- Compressor Threshold Range -40dBu to +20dBu
- Compressor Threshold Characteristic Selectable OverEasy® or hard knee
- Compressor Ratio Variable; 1:1 to Infinity:1; 60dB Maximum Compression
- Compressor Attack Time Variable program-dependent; 3ms to 340ms for 15dB gain reduction
- Compressor Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec
- Expander/Gate Threshold Range OFF to +15dBu
- Expander/Gate Ratio 10:1
- Expander/Gate Max Depth >60dB
- Expander/Gate Attack Time <500µs (from Maximum Depth)
- Expander/Gate Release Time Adjustable, 30ms to 3sec (to 30dB attenuation)
- Limiter Threshold Range 0dBu to +20dBu
- CMRR >40dB, typically >55dB at 1kHz
- Interchannel Crosstalk <-80dB, 20Hz to 20kHz
- Dynamic Range >115 dB, unweighted
- Stereo Coupling True RMS Power Summing™
- Power Consumption 15 Watts Maximum
- Operating Temperature 0°C to 45°C (32°F to 113°F)
- Dimensions 1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)
- Unit Weight 5.05 lb (2.29 kg)
- Shipping Weight 7.20 lb (3.27 kg)
- Reference 0dBu = 0.775Vrms
- Operating Voltage 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
