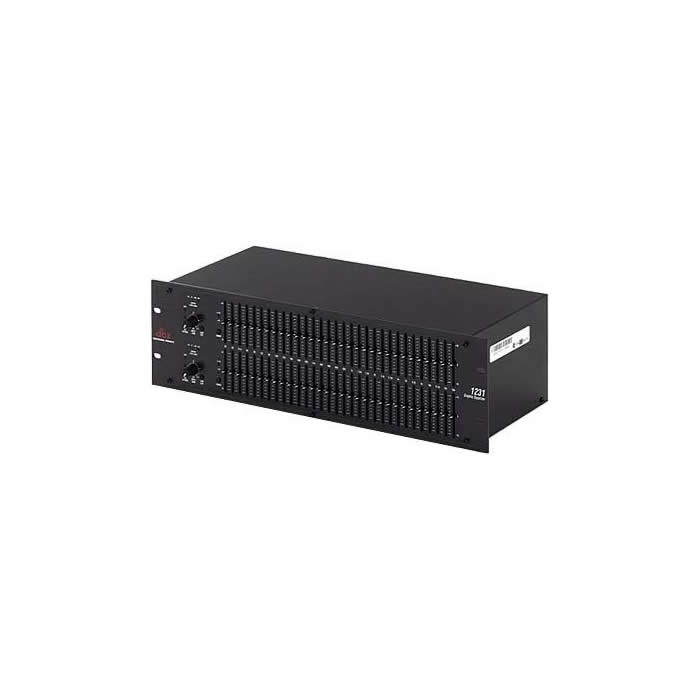

Dbx - 1231 Çift Kanal 31 Band Equalizer

Paylaş:
Stok Kodu
:
T29236
Stok Durumu
:
Bilgi Alınız
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • 1231 Çift Kanal 31 Band Equalizer

    Teknik Özellikler:

    Input Connectors 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
    Input Type Electronically balanced/unbalanced, RF filtered
    Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm
    Max Input >+21dBu balanced or unbalanced
    CMRR >40dB, typically >55dB at 1kHz
    Output Connectors 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
    Output Type Impedance-balanced/unbalanced, RF filtered
    Output Impedance Balanced 200 ohm, unbalanced 100 ohm
    Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
    Bandwidth 20Hz to 20kHz, +0.5/-1dB
    Frequency Response <10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range
    Dynamic Range 109dB; 115dB
    Signal to Noise Ratio 90dB, 97dB
    THD+Noise <0.005%
    Interchannel Crosstalk <-80db, 20Hz to 20kHz
    Bypass Switch Bypasses the graphic equalizer section in the signal path
    Low cut Switch (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
    Range Switch (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
    I/O Meter 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
    Indicators EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
    Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
    Power Consumption 24W
    Power Connector IEC receptacle
    Dimensions 5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm)
    Unit Weight 10.6 lbs.
    Shipping Weight 11.6 lbs.
    Garanti Bilgisi
    :
    24 Ay
    Ürün Etiketleri
    ses sistemleri
%43 indirimli Kazancınız 16.043 TL
Ürün Fiyatı:37.136 TL
21.093 TL KDV Dahil
