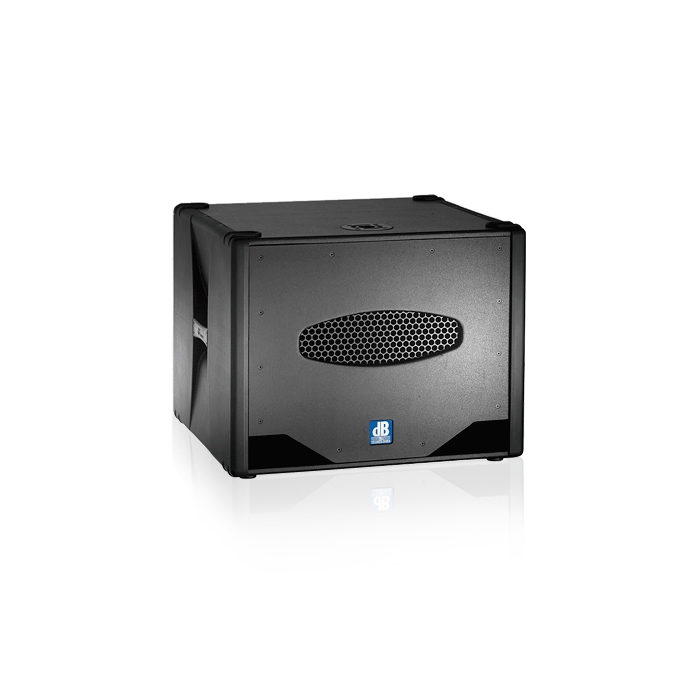

SUB 808 D Aktif Subbass Kabin Hoparlör
Sporting an 18” woofer loaded to a bandpass housing and an onboard 800W digital power amp, the SUB 808 D delivers a low-ranging bass foundation to provide precisely the low-end support 12“ and 15” speaker systems need.

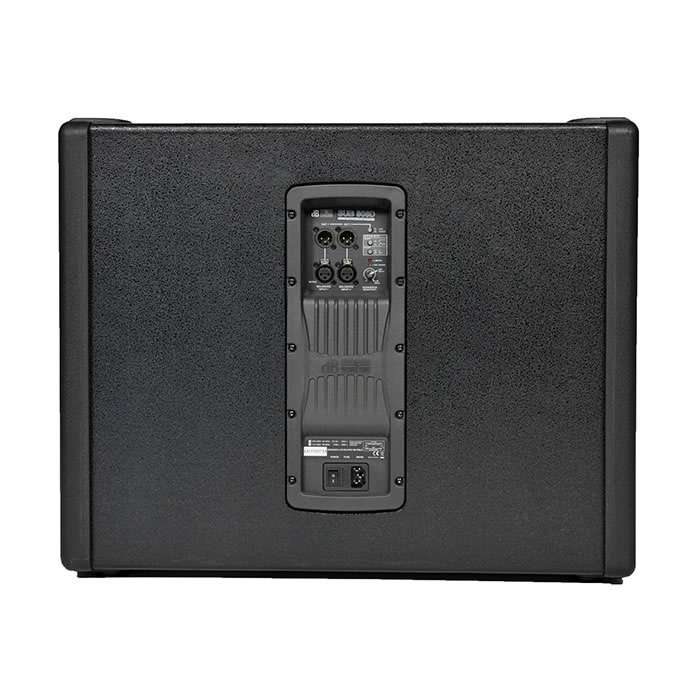

Such rigs are easily set up, connected and configured thanks to the built-in digital stereo x-over (DSP) with switchable cutoff frequency, phase reverse switch, and integrated control features.
TECHNICAL DATA
- Speaker Type: Active Bandpass Subwoofer
ACOUSTICAL DATA
- Frequency Response [-10dB]: 30 - 150 Hz
- Max SPL: 130 dB
- Directivity: omnidirectional
- LF: 18 "
AMPLIFIER
- Amp Technology: Digipack™
- Amp Class: Class D
- Peak Power: 1000 W
PROCESSOR
- Controller: DSP 24 bit/ 48 kHz
- Phase: 0, 180 °
- Limiter: Dual Active Limiter
- Crossover Frequency: 100 Hz, 24dB/Octave
- System Presets: Flat, Boost
INPUT
- Signal Input: 2x XLR
- Signal Output: 2x XLR Link Out/X-Over Out
MECHANICS
- Housing: Multiplex with H.E.T coating, reinforced
- Width: 640 mm (25.6 in)
- Height: 520 mm (20.8 in)
- Depth: 615 mm (24.6 in)
- Weight: 34,8 kg (74.96 lbs)
