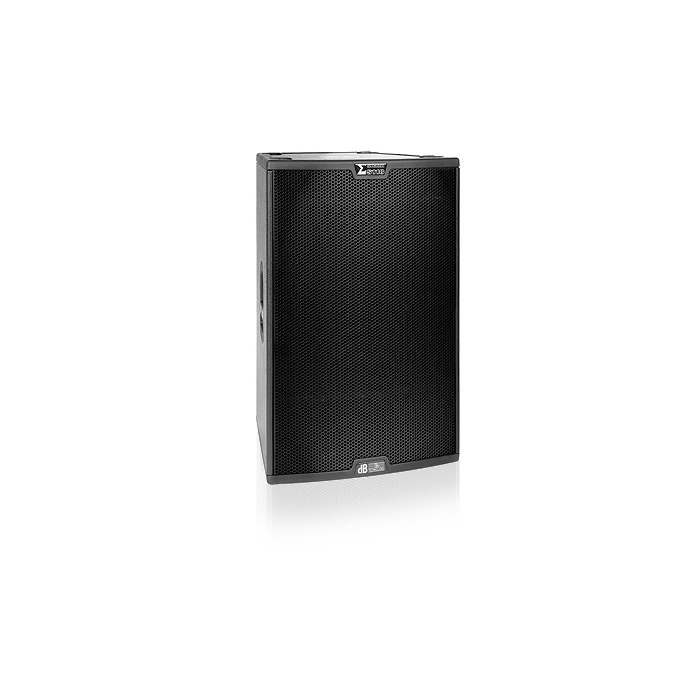

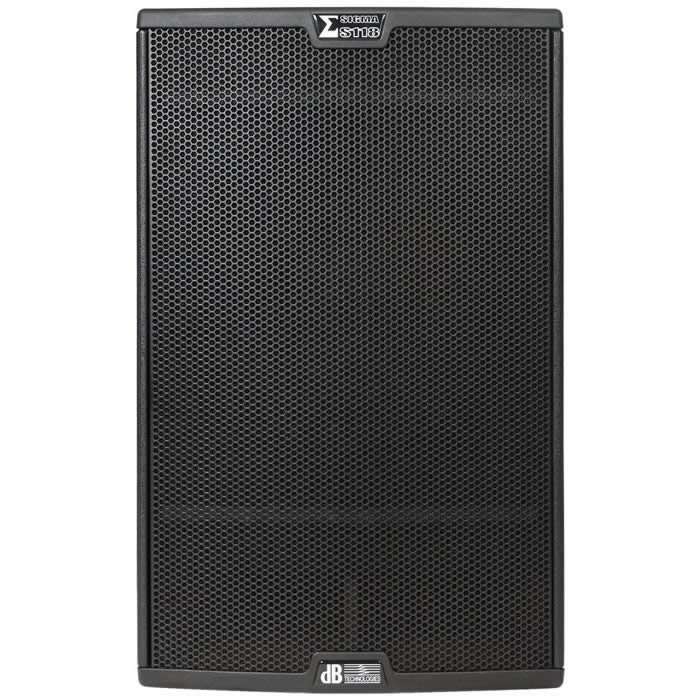

SIGMA S118 Aktif Subbass Kabin Hoparlör
The S118 is a powerful, active 18“ subwoofer housed in a bassreflex enclosure.
Designed specifically to provide low-frequency support for high performance S115 fullrange speakers, it packs a mighty low-ranging bass punch.
S118 and S115 enclosures have the same width so they are easily stacked to set up professional-grade PA systems.
Teknik Özellikler:
TECHNICAL DATA
Speaker Type: Active Bassreflex Subwoofer
ACOUSTICAL DATA
Frequency Response [-10dB]: 32 - 110 Hz
Max SPL: 134 dB
Directivity: omnidirectional
LF: 18 "
Voice Coil LF: 4 "
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
Power PRG: 1400 W
Peak Power: 2800 W
PROCESSOR
Controller: Analog/Digital
Limiter: Peak, RMS, Thermal
Crossover Frequency MF-HF: 80-100 Hz (Switchable)
LF-Xover out slope: 24 dB/Octave
INPUT
Signal Input: XLR
Input Sensitivity [dBu]: -3dBu
Signal Output: 1x XLR X-Over Out/ Link Out
MECHANICS
Housing: Multiplex with H.E.T coating, reinforced
Width: 509 mm (20.36 in)
Height: 815 mm (32.6 in)
Depth: 533 mm (21.32 in)
Weight: 38 kg (83.78 lbs)
