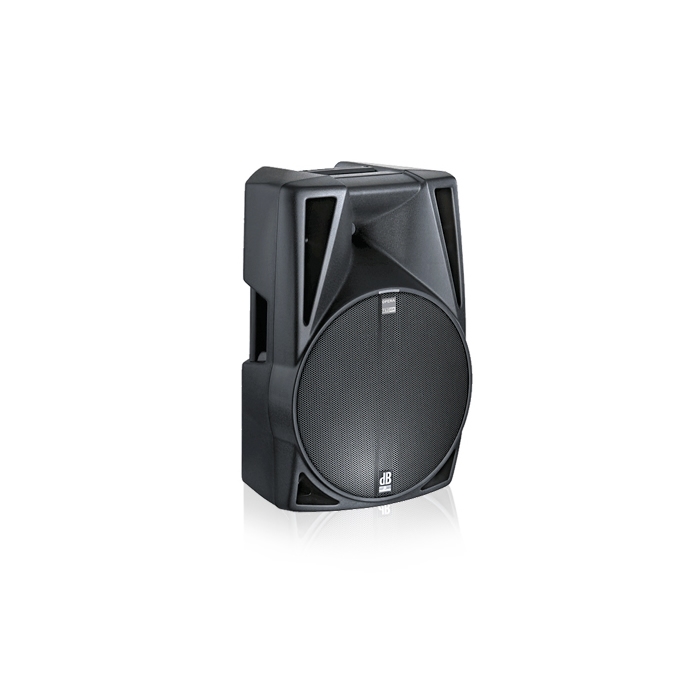

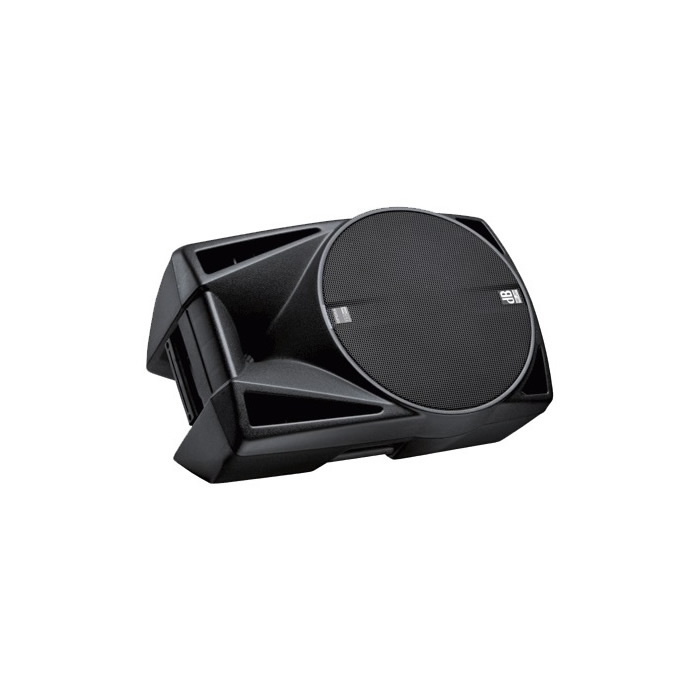

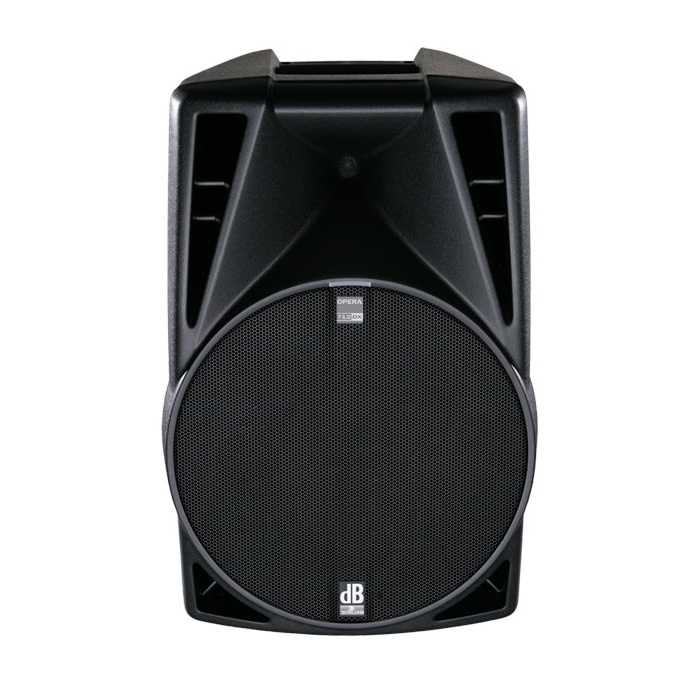

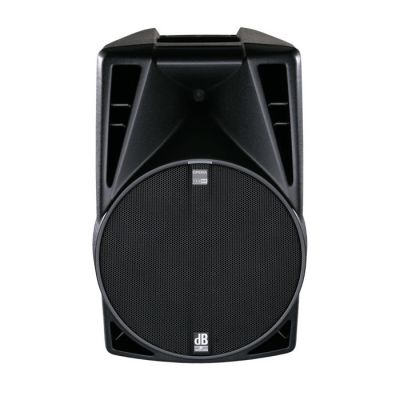

DB Technologies - Opera 712 DX Aktif Kabin Hoparlör

The Opera 712 DX sets the performance standard for other 12“/1“ systems to follow.

Feel free to set it up as a fullrange FOH enclosurepair it with subwoofers, or use it as a monitor.

But whatever you do with it, rest assured you will enjoy excellent acoustical properties, high sound pressure levels and an impressive audio experience.

The recommended subwoofer is the SUB18D

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 59 - 20.000 Hz

Frequency Response [+/- 3dB]: 70 - 19.000 Hz

Max SPL: 128 dB

HF: 1 "

Type HF: Compression driver

Directivity: 80/65 x 60 °

Horn: Asymmetrical CD Horn

LF: 12 "

AMPLIFIER

Amp Technology: digipro®G2

Amp Class: Class D

Power PRG: 700 Watt

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Processed

Limiter: Dual Active Peak, RMS, Thermal

INPUT

MECHANICS

Housing: Polyporpylen PP

Angles Up: Monitor use 43 °

Width: 432 mm (17.28 in)

Height: 655 mm (26.2 in)

Depth: 353 mm (14.12 in)

Weight: 15,4 kg (33.07 lbs)
