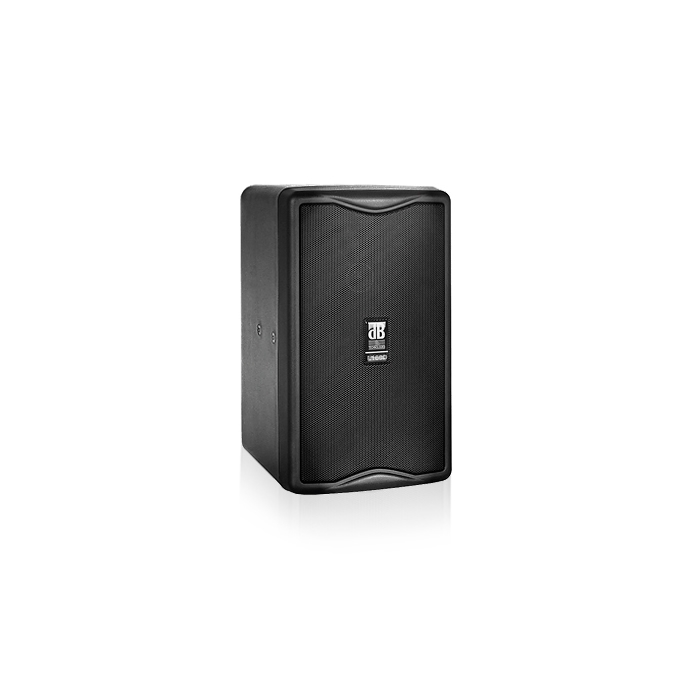

A powerful yet surprisingly light cabinet, the remarkably compact L160D offers a variety of connection options to provide convenient sound reinforcement for multimedia applications.
Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.
The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use.
Teknik Özellikler:
- TECHNICAL DATA
- Speaker Type: 2-Way Active Speaker
- ACOUSTICAL DATA
- Frequency Response [-10dB]: 70 - 20.000 Hz
- Max SPL: 116 dB
- HF: 1 "
- Type HF: Dome Tweeter, coaxial
- Directivity: 85 x 75 °
- LF: 2x 5 “
- AMPLIFIER
- Amp Technology: digipro®
- Amp Class: Class D
- Power PRG: 160 W
- Cooling: Convection
- PROCESSOR
- Controller: DSP 24bit/48kHz
- System Presets: 8
- Limiter: Dual Active Peak, RMS, Thermal
- Slope MF-HF: 24 dB/Octave
- INPUT
- Signal Input: 1x XLR Line In/Mic 1x 6.3mm phone jack 1x RCA cinch AUX with volume ctrl
- Microphone Input: YES
- Signal Output: 1x 6.3mm phone jack
- Power Socket: VDE
- Voltage Range: 110-120 - 220-240 V
- MECHANICS
- Housing: Polyporpylen PP
- Angles Up: 60° for monitor use °
- Rigging Points: 2x M5 on side 2x M5 on bottom for accessories
- Accessory: WB03, SN120
- Width: 200 mm (8 in)
- Height: 335 mm (13.4 in)
- Depth: 220 mm (8.8 in)
- Weight: 5.2 kg (11.46 lbs)
