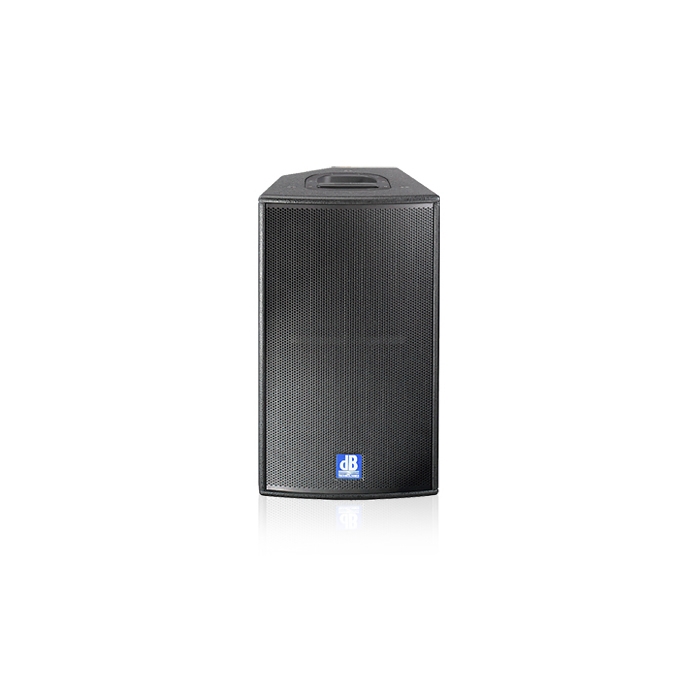

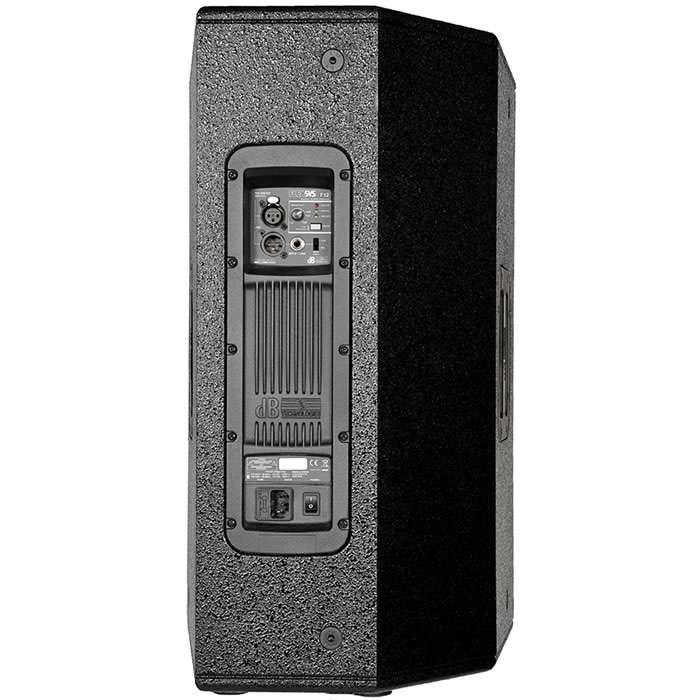

DB Technologies - Flexsys F 10 Aktif Hoparlör

The two-way enclosure loaded with a 12“ speaker is so frequently used for

sound reinforcement applications that it has become a de facto standard.

Thanks to its rotatable horn, integrated rigging points, and slanted panel for monitoring, the F12 will serve you well in almost every conceivable application.

Rotatable Horn: YES

Controller: DSP 24bit/48kHz

Angles Up: Monitor use 45 °

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 65 - 20.000 Hz

Frequency Response [+/- 3dB]: 75 - 19.000 Hz

Max SPL: 127 dB

HF: 1 "

Type HF: Compression driver

Directivity: 90 x 40°

Horn: CD Horn

Rotatable Horn: YES

LF: 12"

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

Power PRG: 800 W

Peak Power: 1600 W

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Processed

Limiter: Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF: 1300 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex

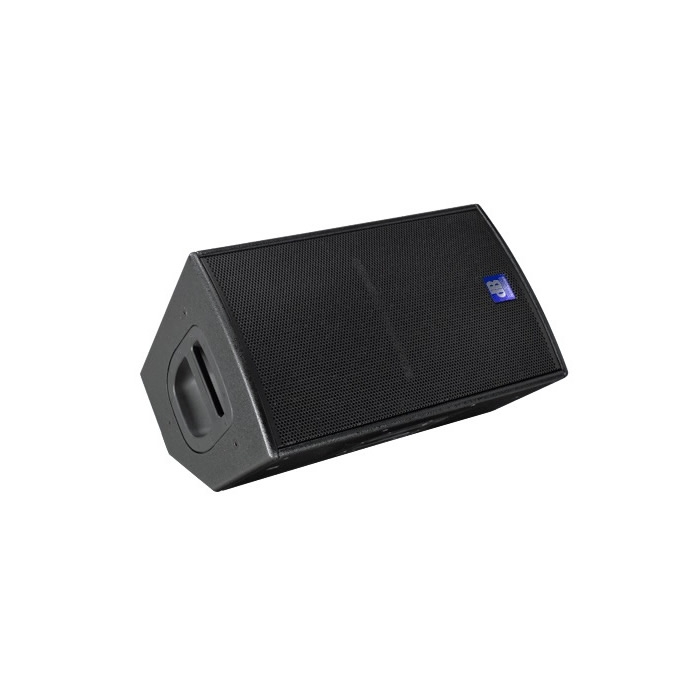

Angles Up: Monitor use 45 °

Width: 360 mm (14.4 in)

Height: 610 mm (24.4 in)

Depth: 360 mm (14.4 in)

Weight: 16.5 kg (36.38 lbs)
