DB Technologies - DVX DM 15 Aktif Monitör

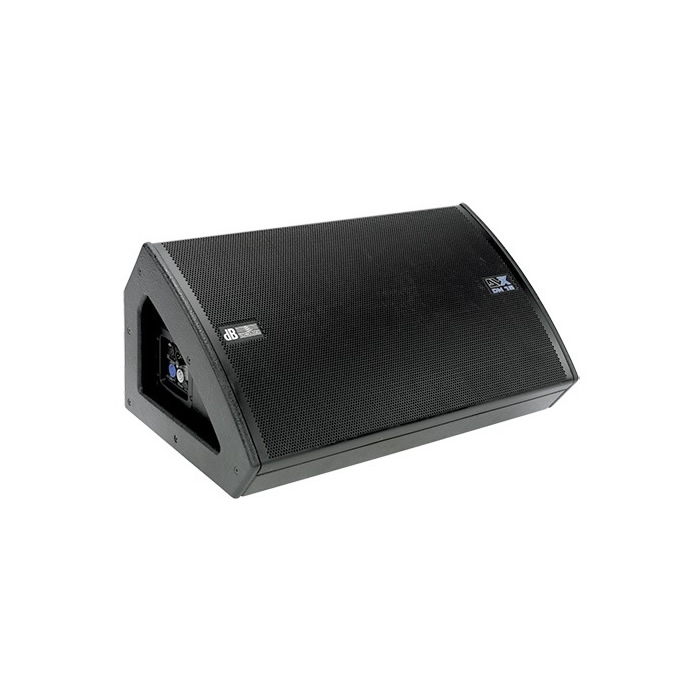

The DVX DM15 is a low-profi le stage monitor.

Unobtrusive yet very muscular, it is designed for sound reinforcement applications that require powerful low-end performance without added subwoofers.

It sports a high-performance 15“ neodymium woofer and a 1.4“ neodymium compression driver, coupled to an aluminum“ CD horn.

This combination’s response across the human voice’s full range is impressively assertive.

Paired with high-output digipro digital power amps in a bi-amped confi guration,

the DVX DM15 belies its unobtrusive look with performance that is far from understated, delivering plenty of power to cover midsized to large stages.

TECHNICAL DATA

Speaker Type: 2-Way Active Stage Monitor

ACOUSTICAL DATA

Frequency Response [-10dB]: 50 - 20.000 Hz

Frequency Response [+/- 3dB]: 59 - 19.000 Hz

Max SPL: 132 dB

HF: 1.4 "

Type HF: Neodymium Compression Driver

Voice Coil HF: Titanium 2.5 "

Directivity: 60x40 °

Horn: CD Horn Aluminium

Rotatable Horn: YES

LF: 15 "

Type LF: Neodymium

Voice Coil LF: 3.5 "

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

Power RMS: 750 W

Peak Power: 1500 W

Cooling: Convection

PROCESSOR

Controller: DSP 24 Bit/48 kHz

System Presets: Flat, Monitor

Limiter: RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF: 1320 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Low Profile Multifunctional

Angles Up: 35, 55 °

Rigging Points: 6x M8

Width: 734 mm (29.36 in)

Height: 338 mm (13.52 in)

Depth: 442 mm (17.68 in)

Weight: 21 kg (46.3 lbs)
