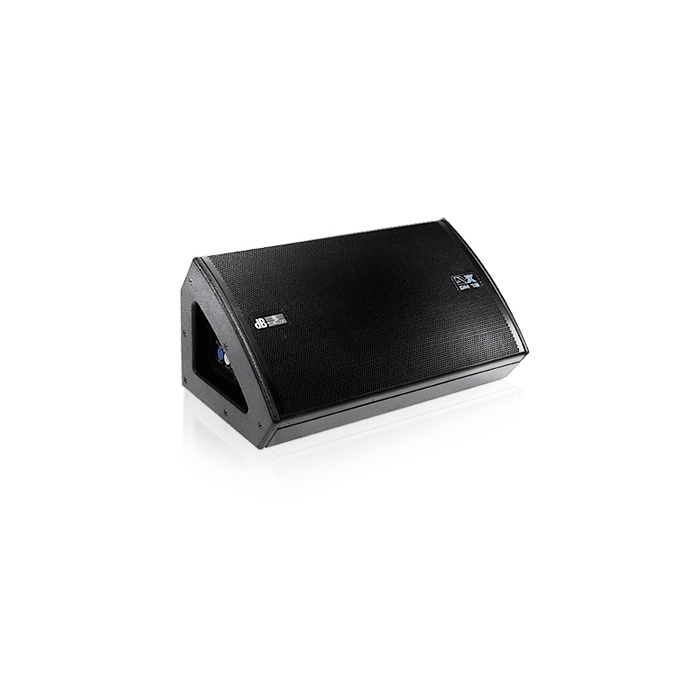

DB Technologies - DVX DM 12 Aktif Monitör

The DVX DM12 is an active bi-amped stage monitor.

Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.

Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12“ neodymium woofer paired with a 1.4“ neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.

Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today’s artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.

TECHNICAL DATA

Speaker Type: 2-Way Active Stage Monitor

ACOUSTICAL DATA

Frequency Response [-10dB]: 55 - 20.000 Hz

Frequency Response [+/- 3dB]: 68 - 19.000 Hz

Max SPL: 131 dB

HF: 1.4 "

Type HF: Neodymium Compression Driver

Voice Coil HF: Titanium 2.5 "

Directivity: 40x90 °

Horn: CD Horn Aluminium

Rotatable Horn: YES

LF: 12 "

Type LF: Neodymium

Voice Coil LF: 3 "

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

Power RMS: 750 W

Peak Power: 1500 W

Cooling: Convection

PROCESSOR

Controller: DSP 24 Bit/48 kHz

System Presets: Flat, Monitor

Limiter: RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF: 1320 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Low Profile Multifunctional

Angles Up: 35, 55 °

Rigging Points: 6x M10 4x Quick-Relase Pins

Width: 660 mm (14.8 in)

Height: 305 mm (25 in)

Depth: 378 mm (15.8 in)

Weight: 17.5 kg (55.12 lbs)
