DB Technologies - DVX D12 HP Aktif Kabin Hoparlör

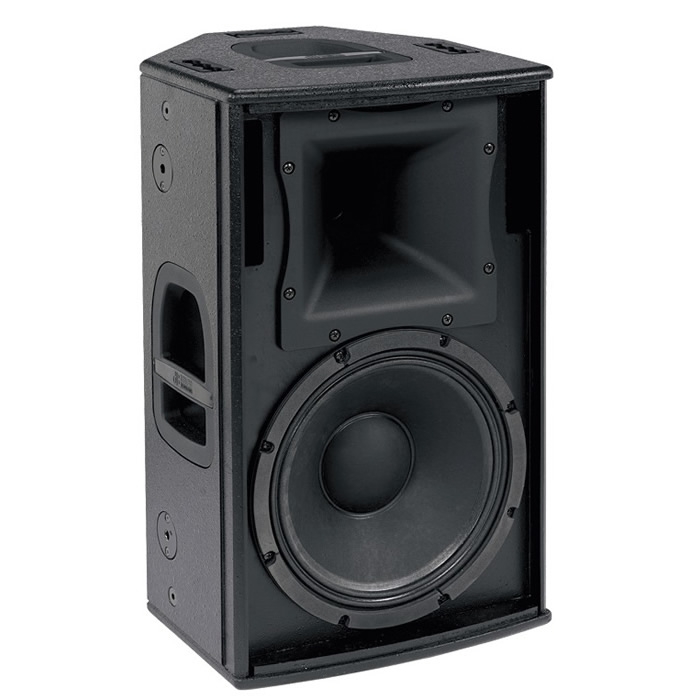

Configured as a classic 12“/1.4“ 2-way system, the DVX D12 HP is a compact, astonishingly light enclosure offering very flexible application options. Its integrated, high-performance digipro G2 digital power amp delivers exceedingly dynamic response, crisp and tight low end, and tremendous sound pressure.

Loaded with high-quality speakers, it provides high-end audio performance with maximum reliability and minimum power compression.

A 1.4” driver with a 2.5” voice coil designed to handle highest loads renders vocals with amazing accuracy across medium-to-longer throw distances.

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 55 - 20.000 Hz

Frequency Response [+/- 3dB]: 68 - 19.000 Hz

Max SPL: 131 dB

HF: 1.4 "

Voice Coil HF: 2.5 "

Directivity: 60x40 °

Horn: CD Horn Aluminium

Rotatable Horn: YES

LF: 12 "

Voice Coil LF: 3 "

AMPLIFIER

Amp Technology: Digipro® G2

Amp Class: Class D

Power RMS: 700 W

Peak Power: 1400 W

Cooling: Convection

PROCESSOR

Controller: DSP 24 Bit/48 kHz

System Presets: FOH, Monitor

Limiter: RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF: 1350 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Multifunctional

Angles Up: Monitor use 45 °

Rigging Points: 6x M10 4x Quick-Relase Pins

Flytracks: 3x on top 3x on bottom

Width: 370 mm (14.8 in)

Height: 625 mm (25 in)

Depth: 395 mm (15.8 in)

Weight: 27.5 kg (60.63 lbs)
