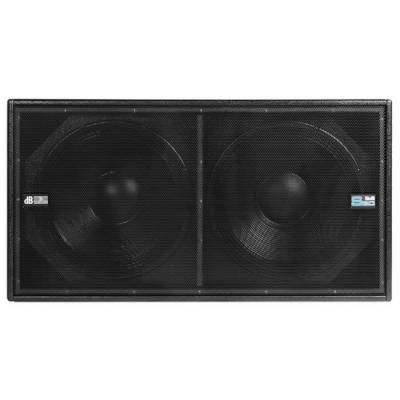

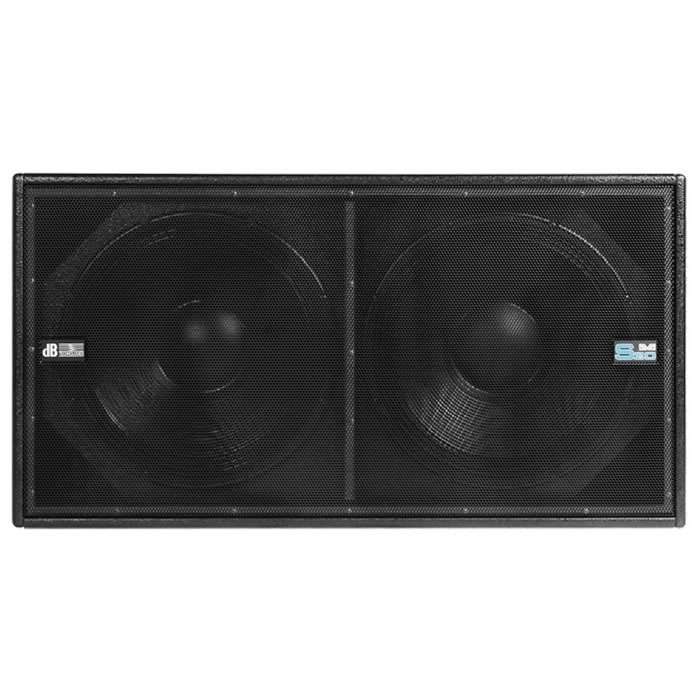

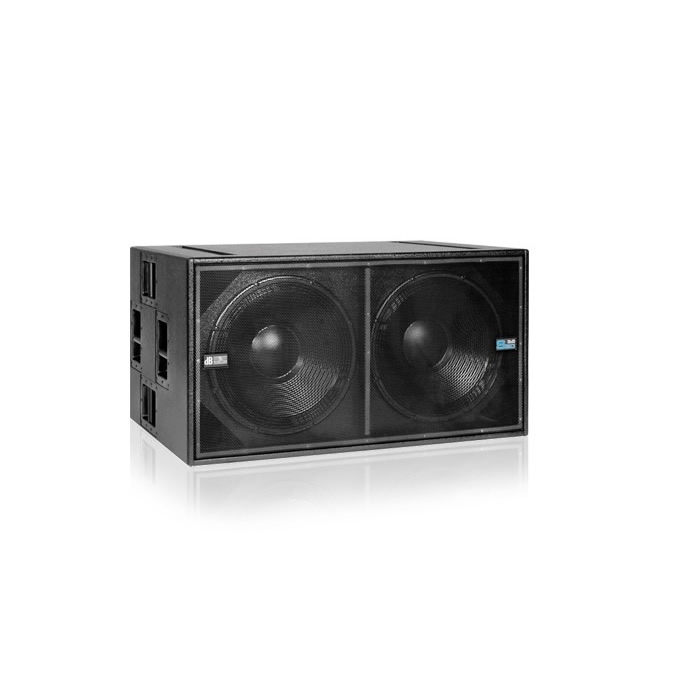

DB Technologies - DVA S20 DP Aktif Subbass Kabin Hoparlör

Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance, rendering frequencies as low as 25 hertz assertively and with impressive authority.

It is the perfect sub-bass provider for DVA S10/T4 systems and an excellent complement to DVA T4 mid-/high-range units in stacked arrays.

Thanks to the integrated Quick-Release-Pins, both DRK-10 and DRK-20 frames can be easily mounted to set up a ground stacked system.

TECHNICAL DATA

Speaker Type: Active Bassreflex Subwoofer

ACOUSTICAL DATA

Frequency Response [+/- 3dB]: 35 - 120 Hz

Max SPL: 138 dB

Directivity: Omnidirectional, Cardiod Option with SDD Module

LF: 2x18 "

Voice Coil LF: 4 "

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

LF Amp: 2000 W RMS

Cooling: Convection

PROCESSOR

Controller: Analog

Limiter: RMS, Peak, Thermal

Delay Option: SDD Module

Crossover Frequency LF-MF: 90, 120 Hz

LF-Xover out slope: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Rectangular

Handles: 4x Per Side

Accessory: Wheels 100mm, Dust Cover

Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames

Width: 1100 mm (44 in)

Height: 580 mm (23.2 in)

Depth: 720 mm (28.8 in)

Weight: 84 kg (185.19 lbs)
