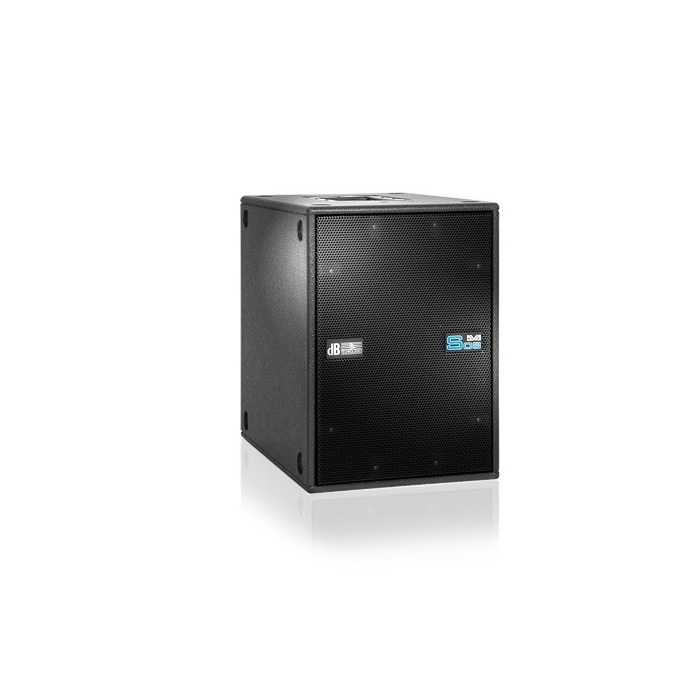

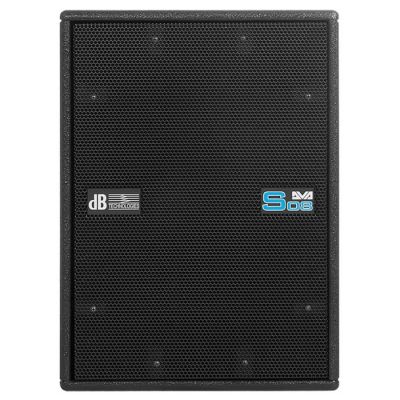

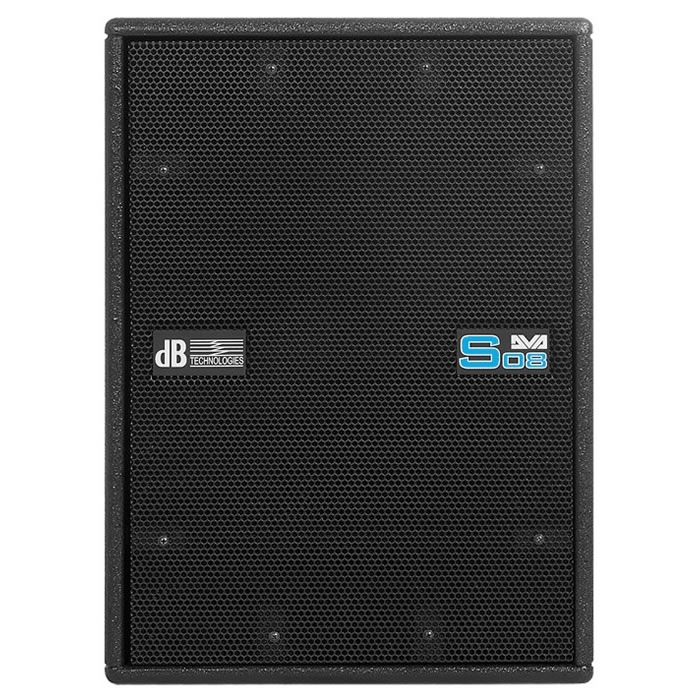

DB Technologies - DVA S08 Aktif Subbass Kabin Hoparlör

The DVA S08 DP  is a remarkably compact 12“ high power active bassreflex subwoofer for professional applications and to satisfy upmarket requirements.

It delivers a high momentum and at the same time reproduces a punchy low end.

Equipped with a 800W/RMS digipro® digital power amp including switch mode supply, this unit provides a high sound pressure level of up to 131dB.

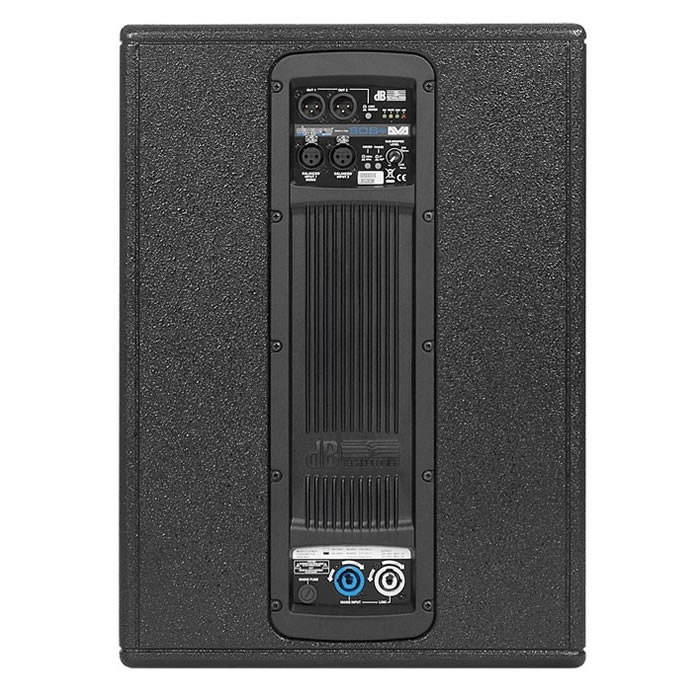

Furthermore there is a powercon in and out for mains connection.

TECHNICAL DATA

Speaker Type: Active Bassreflex Subwoofer

ACOUSTICAL DATA

Frequency Response [+/- 3dB]: 40 - 150 Hz

Max SPL: 131 dB

Directivity: Omnidirectional

LF: 12 "

Voice Coil LF: 3 "

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

LF Amp: 800 W RMS

Cooling: Convection

PROCESSOR

Controller: Digital + Analog (Stereo)

Phase: 0, 180 °

Limiter: RMS, Peak, Thermal

Delay Option: NO

Crossover Frequency LF-MF: 90, 120 Hz

LF-Xover out slope: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Rectangular

Handles: 1x on top

Pole Mount: 2x M20

Accessory: Dust Cover

Width: 360 mm (20.8 in)

Height: 520 mm (14.4 in)

Depth: 500 mm (20 in)

Weight: 23 kg (50.71 lbs)
