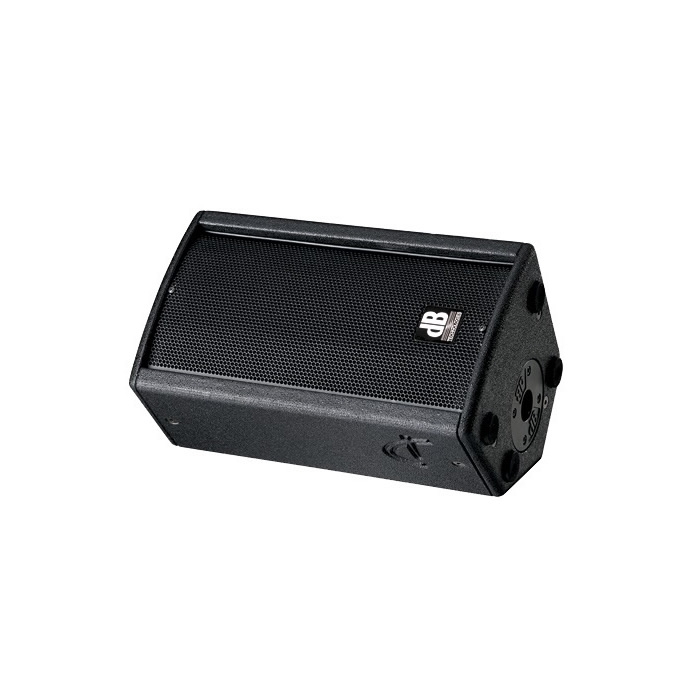

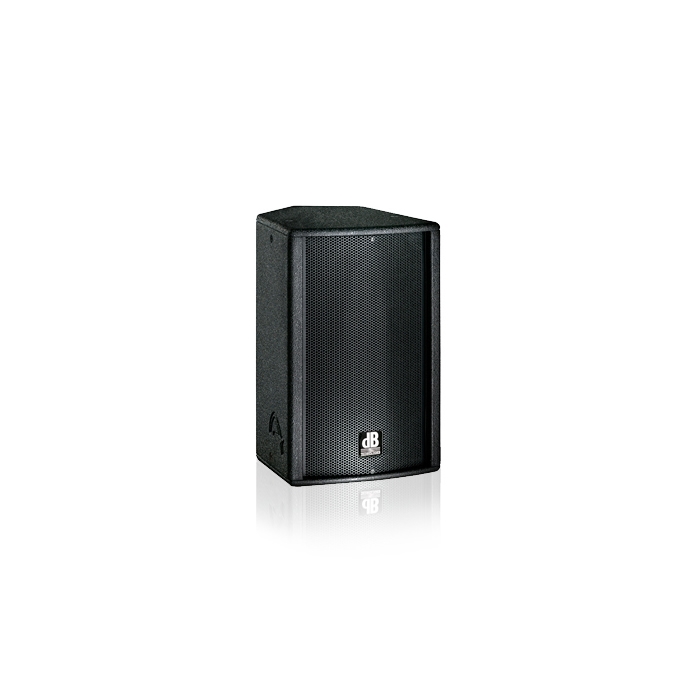

The ARENA 8 PRO is an exceedingly compact yet surprisingly powerful speaker designed to render speech and background and other music.
Loaded with a high-quality 8“ RCF woofer and a 1“ RCF neodymium compression driver with a rotatable aluminum 90° x 70° CD horn, it is very articulate, providing great speech intelligibility despite its compact dimensions and light weight of just 10.9 kg.
Speaker Type: 2-Way Passive Speaker
ACOUSTICAL DATA
Nominal Power Rating: 300 W/RMS
Program Power Rating: 600 W
Impedance: 8 Ohms
Sensitivity 1W@1m: 94 dB
Frequency Response [+/- 3dB]: 100 - 19.000 Hz
Max SPL: 125 dB
HF: 1 “
Voice Coil HF: 1.5 “
Driver Protection: PTC
Directivity: 90x70 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
Crossover Frequency (passive): 1800 Hz
LF: 8 “
Voice Coil LF: 2 “
AMPLIFIER
PROCESSOR
INPUT
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
MECHANICS
Housing: Multiplex birch plywood
Rigging Points: 12 x M8
Width: 270 mm (10.8 in)
Height: 458 mm (18.32 in)
Depth: 270 mm (10.8 in)
Weight: 10.9 kg (24.03 lbs)
