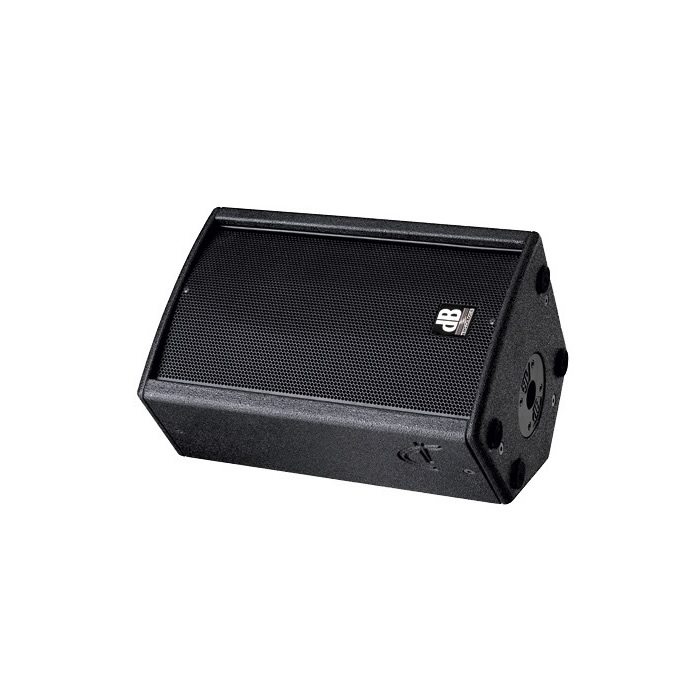

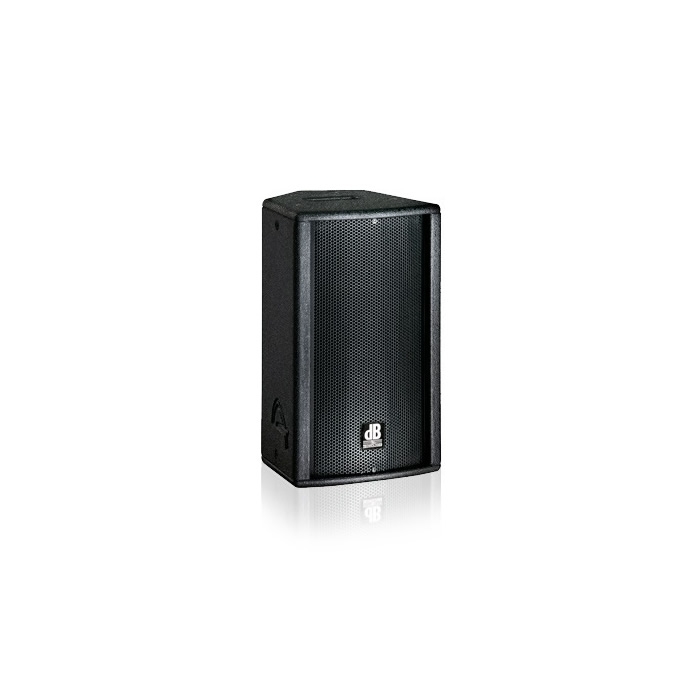

The ARENA 10 PRO is a highly versatile, inconspicuous two-way speaker cabinet well-suited for use in speech reinforcement applications where quality matters, and for fullrange applications requiring lower-level bass response.
Employed as a compact floor monitor, it provides dynamic and precise voice reinforcement with considerable sound pressure.
Teknik Özellikler:
- Nominal Power Rating: 300 W/RMS
- Program Power Rating: 600 W
- Impedance: 8 Ohms
- Sensitivity 1W@1m: 96 dB
- Frequency Response [+/- 3dB]: 90 - 19.000 Hz
- Max SPL: 127 dB
- HF: 1 “
- Voice Coil HF: 1.5 “
- Driver Protection: PTC
- Directivity: 90x70 °
- Horn: CD Horn Aluminium
- Rotatable Horn: YES
- Crossover Frequency (passive): 1800 Hz
- LF: 10 “
- Voice Coil LF: 2 “
- AMPLIFIER
- PROCESSOR
- INPUT
- Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- MECHANICS
- Housing: Multiplex birch plywood
- Rigging Points: 12 x M8
- Width: 320 mm (12.8 in)
- Height: 508 mm (20.32 in)
- Depth: 320 mm (12.8 in)
- Weight: 14.2 kg (31.31 lbs)
