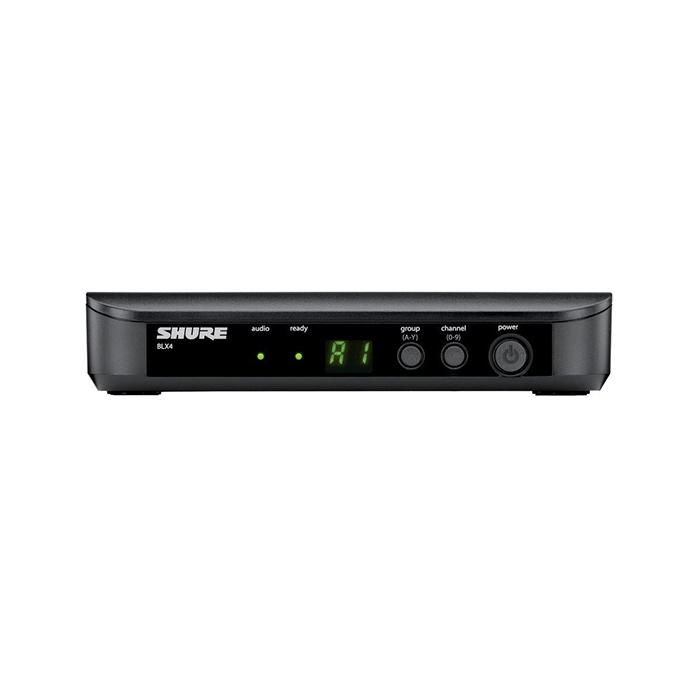

Shure BLX4E Telsiz Setler için Tek Kanal Alıcı Ünite

The BLX4 Single-Channel Wireless Receiver from Shure is a single-channel receiver set to Shure's K12 frequency band and operates between 614 to 648 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.

Frekans

H8 - 518 / 542 Mhz

J10 - 584 / 608 Mhz

K12 - 614 / 638 Mhz

M15 - 662 / 686 Mhz

Use with BLX Wireless Systems

One-Touch QuickScan Frequency Selection

1x XLR & 1x 1/4" Outputs

Diversity Antenna

Audio Status LED Indicator

Specification

Output 1x XLR Output

1x 1/4" (6.35 mm) Output

Output Impedance XLR: 200 Ω

1/4": 50 Ω

Audio Output Level XLR Connector: -27 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)

1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)

RF Sensitivity -105 dBm for 12 dB SINAD, Typical

Image Rejection >50 dB, Typical

Housing Molded ABS

Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)

Dimensions (H x W x D) 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)

Weight 8.5 oz (241 g)
