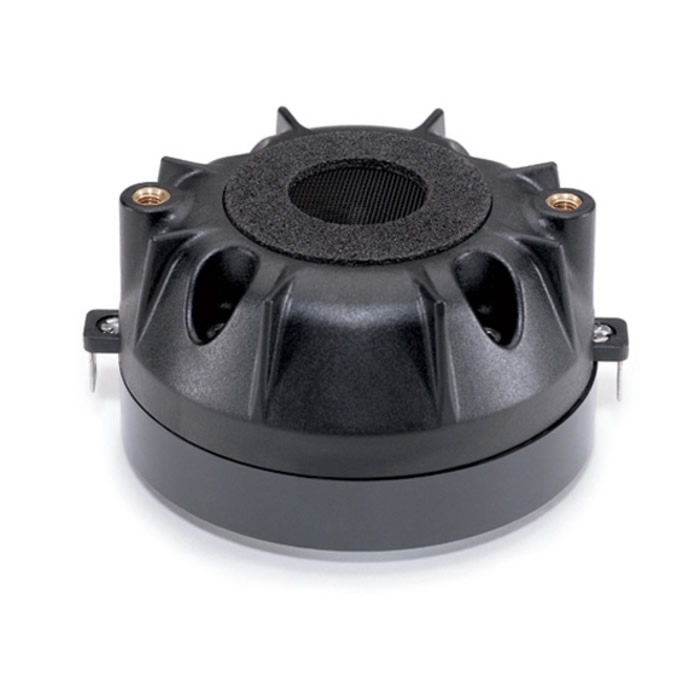

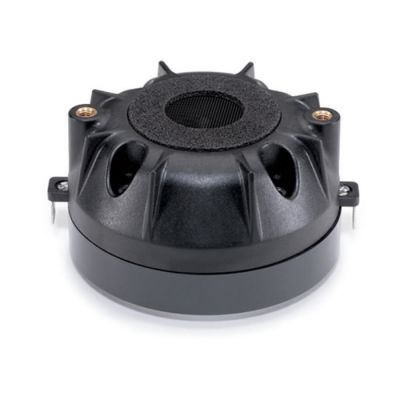

40 W continuous program power capacity
1" horn throat diameter
25 mm (1 in) aluminium voice coil
Polyester diaphragm
1500 - 18000 Hz response
107 dB sensitivity
Teknik Özellikler:
- Throat diameter 25 mm (1.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 6.3 Ω
- Nominal power handling * 20 W
- Continuous power handling * 40 W
- Sensitivity (1W/1m) * 107.0 dB
- Frequency range 2 - 18 kHz
- Recommended crossover * 2.5 kHz
- Voice coil diameter 25 mm (1.0 in)
- Winding material Aluminium
- Inductance 0.1 mH
- Diaphragm material Mylar
- Flux density 1.55 T
- Magnet material Ceramic
- Mounting And Shipping Info
- Two M5 holes 180° on 76 mm (3 in) diameter
- Overall diameter 90 mm (3.5 in)
- Depth 53 mm (2.1 in)
- Net weight 0.8 kg (1.8 lb)
- Shipping units 8
- Shipping weight 6.7 kg (14.7 lb)
- Shipping box 220x220x150 mm (8.7x8.7x5.9 in)
