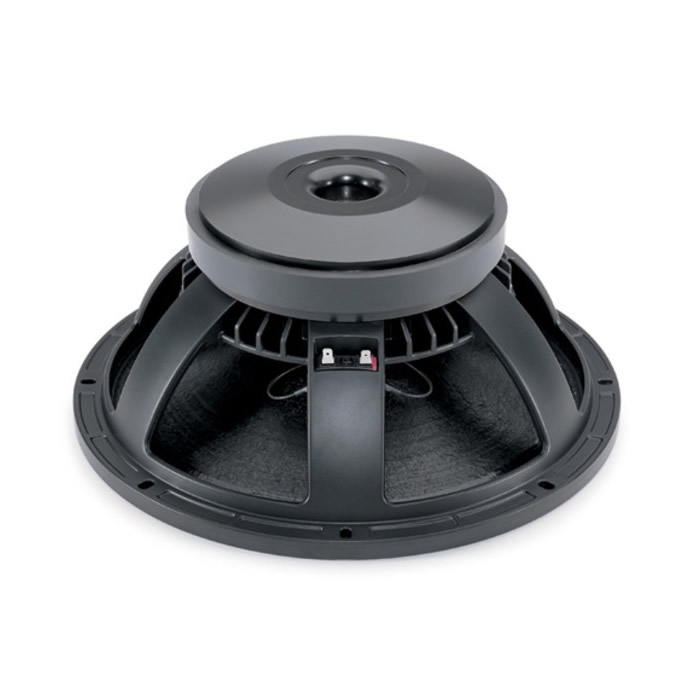

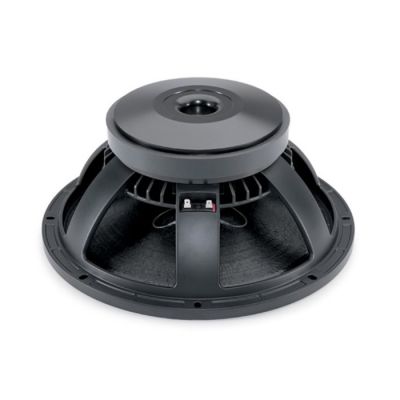

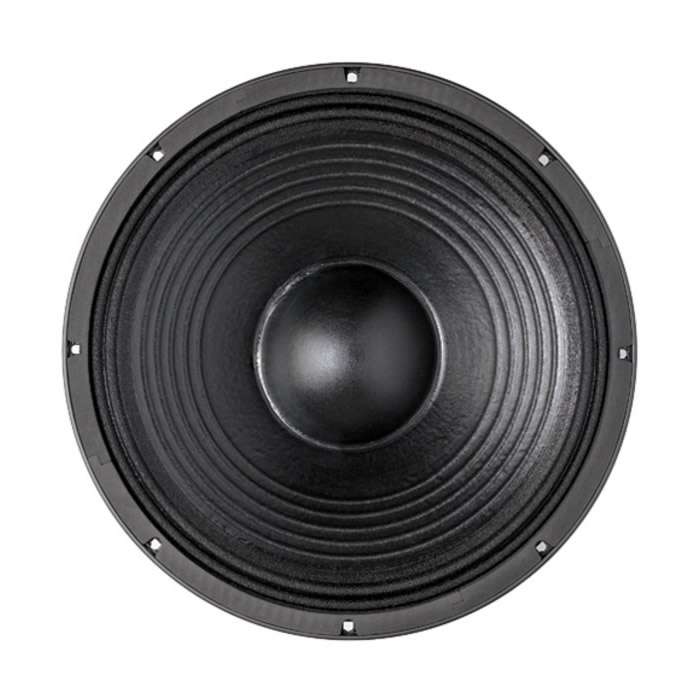

B&C - 15-PZB 100 Çıplak Bass Hoparlör

Paylaş:
Stok Kodu
:
35047
Stok Durumu
:
Bilgi Alınız
Ebat
:
15" - 38 cm
Tip
:
Bass-Mid
Watt Peak - Editör
:
1400
Neodymium
:
Hayır
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • 15PZB100 Çıplak Bass Hoparlör

    1400 W continuous program power capacity
    100 mm (4 in) copper voice coil
    40- 2000 Hz response
    97 dB sensitivity
    Double silicone spider with optimized compliance

    Teknik Özellikler:

    Nominal diameter 380 mm (15.0 in)
    Nominal impedance 8 Ω
    Minimum impedance 6.4 Ω
    Nominal power handling * 700 W
    Continuous power handling * 1400 W
    Sensitivity (1W/1m) * 97.0 dB
    Frequency range 40 - 2000 Hz
    Voice coil diameter 100 mm (4.0 in)
    Winding material Copper
    Former material Glass Fibre
    Winding depth 21 mm (0.83 in)
    Magnetic gap depth 9 mm (0.35 in)
    Flux density 1.15 T
    Design
    Surround shape Double Roll
    Cone shape Exponential
    Magnet material Ceramic
    Spider Double Silicone
    Pole design Straight Pole
    Woofer cone treatment WP Waterproof Front Side
    Recommended enclosure 105.0 dm3 (3.7 ft3)
    Recommended tuning 39 Hz
    Parameters *
    Fs 39 Hz
    Re 5.2 Ω
    Qes 0.3
    Qms 6.5
    Qts 0.29
    Vas 110.0 dm3 (3.8 ft3)
    Sd 855.0 cm2 (132.5 in2)
    η₀ 2.1 %
    Xmax 8.0 mm
    Xvar 6.5 mm
    Mms 154 g
    Bl 25.8 Txm
    Le 2.0 mH
    EBP 130 Hz
    Mounting And Shipping Info
    Overall diameter 393 mm (15.5 in)
    Bolt circle diameter 374 mm (14.7 in)
    Baffle cutout diameter 354.0 mm (13.9 in)
    Depth 174 mm (6.85 in)
    Flange and gasket thickness 16 mm (0.62 in)
    Air volume occupied by driver 5.2 dm3 (0.18 ft3)
    Net weight 11.8 kg (26.0 lb)
    Shipping units 1
    Shipping weight 13.1 kg (28.8 lb)
    Shipping box 450x450x200 mm (17.7x17.7x7.9 in)
    Garanti Bilgisi
    :
    24 Ay
