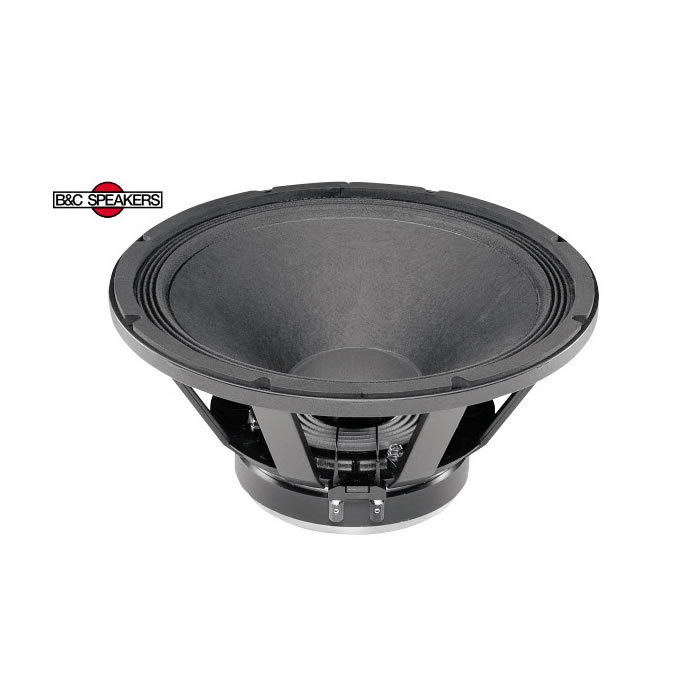

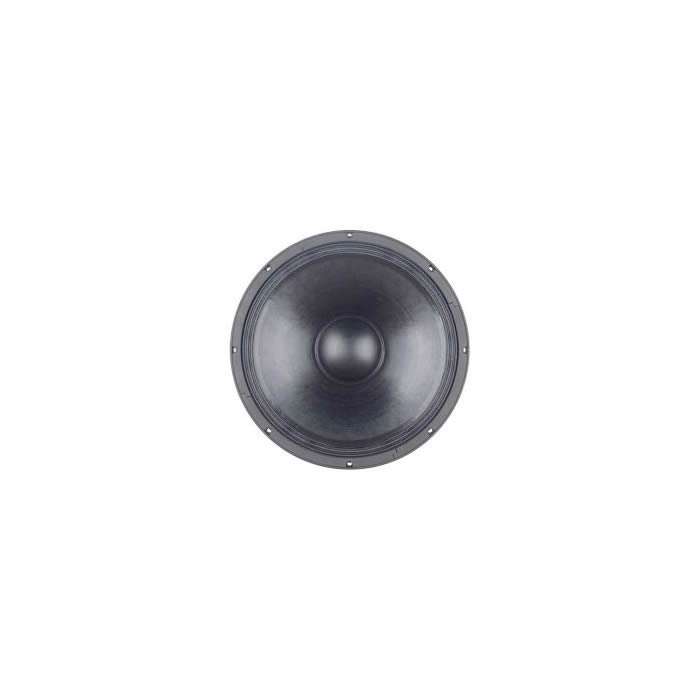

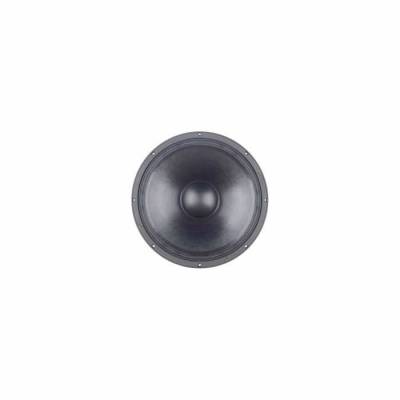

15PL40 Mid Bass Çıplak Hoparlör

Nominal Diameter 380 mm (15 in)

Nominal Impedance 8

Ω

Minumum Impedance 6.2

Ω

Power Handling

(50 –500 Hz)

Nominal1 400 W

Continuous Program2 800 W

Sensitivity (1W/1m)3 99 dB

Frequency Range 40-2000 Hz

Voice Coil Diameter 76 mm (3 in)

Winding Material Copper

Former Material Glass Fibre

Winding Depth 16 mm (5/8 in)

Magnetic Gap Depth 9 mm (11/32 in)

Flux Density 1.2 T

Also available in 4

Ω

, data upon request

Thiele & Small Parameters4

Fs 39 Hz

Re 5.1

Ω

Qes 0.23

Qms 8.7

Qts 0.22

Vas 211 dm3 (7.4 ft3)

Sd 855 cm2 (132.5 in2)

η0 5.3%

X max ± 4 mm

X var ± 4 mm

Mms 79 g

Bl 20.6 T·m

Le 2 mH

Mounting and Shipping Information

Overall Diameter 394 mm (15.5 in)

Bolt Circle Diameter 374 mm (14.6 in)

Baffle Cutout Diameter 355 mm (13.9 in)

Depth 163 mm (6.4 in)

Flange and Gasket Thickness 16 mm (5/8 in)

Net Weight 8.9 kg (19.6 lb)

Shipping Weight 9.6 kg (22.4 lb)

Shipping Box 450x450x200 mm

(17.7x17.7x8 in)
