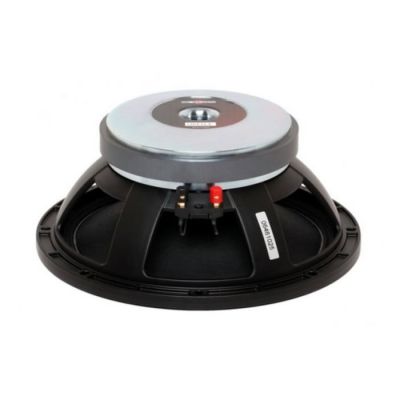

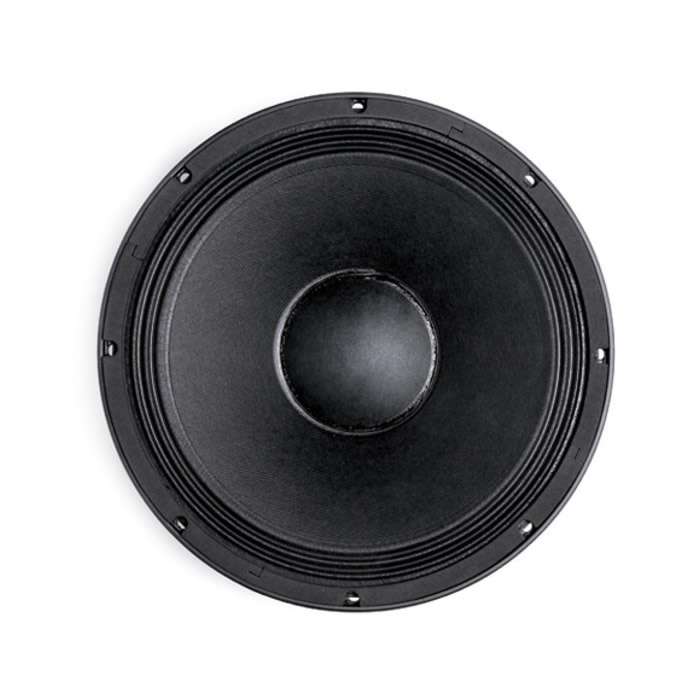

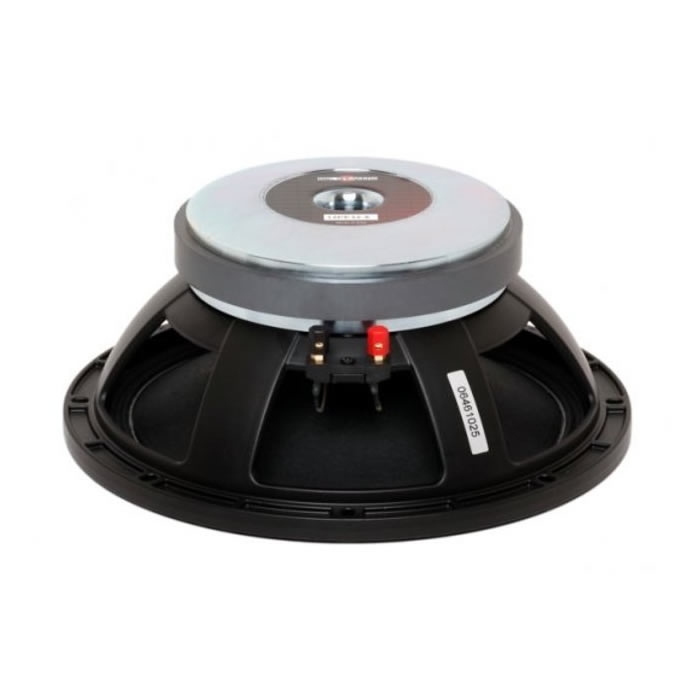

12PE32 Çıplak Mid Bass Hoparlör
500 W continuous program power capacity
64 mm (2.5 in) aluminium voice coil
50 - 4000 Hz response
101 dB sensitivity
Teknik Özellikler:
- Nominal diameter 320 mm (12.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 6.7 Ω
- Nominal power handling * 250 W
- Continuous power handling * 500 W
- Sensitivity (1W/1m) * 101.0 dB
- Frequency range 50 - 4000 Hz
- Voice coil diameter 65 mm (2.5 in)
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 12 mm (0.5 in)
- Magnetic gap depth 7 mm (0.28 in)
- Flux density 1.4 T
- Design
- Surround shape Triple Roll
- Cone shape Exponential
- Magnet material Ceramic
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment None
- Recommended enclosure 31.0 dm3 (1.1 ft3)
- Recommended tuning 85 Hz
- Parameters *
- Fs 51 Hz
- Re 5.8 Ω
- Qes 0.19
- Qms 7.6
- Qts 0.18
- Vas 101.0 dm3 (3.56 ft3)
- Sd 522.0 cm2 (80.9 in2)
- η₀ 6.8 %
- Xmax 2.8 mm
- Xvar 5.0 mm
- Mms 37 g
- Bl 19.1 Txm
- Le 1.2 mH
- EBP 268 Hz
- Mounting And Shipping Info
- Overall diameter 315 mm (12.4 in)
- Bolt circle diameter 296 mm (11.6 in)
- Baffle cutout diameter 282.0 mm (11.1 in)
- Depth 135 mm (5.3 in)
- Flange and gasket thickness 15 mm (0.59 in)
- Air volume occupied by driver 3.1 dm3 (0.11 ft3)
- Net weight 7.6 kg (16.7 lb)
- Shipping weight 8.4 kg (18.7 lb)
- Shipping box 380x380x180 mm (15x15x6.7 in)
