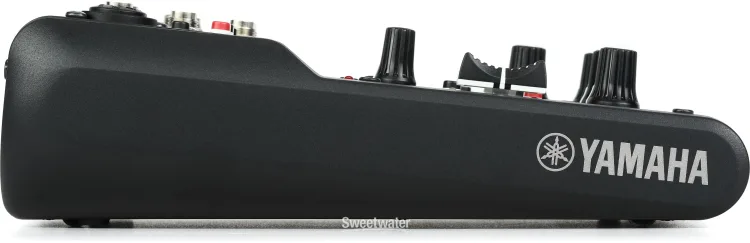

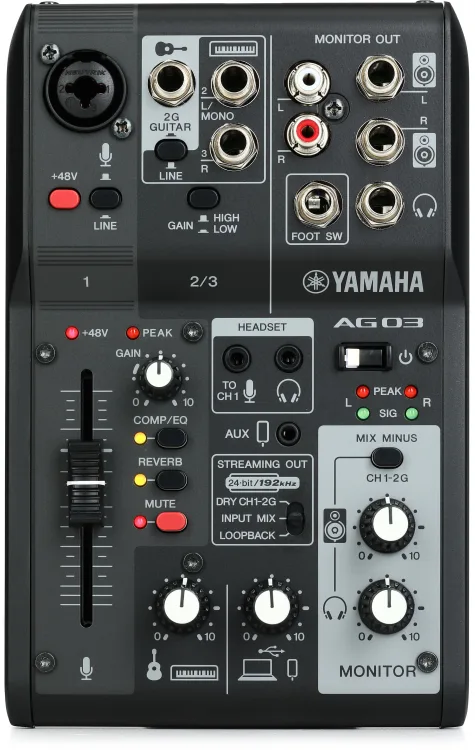

Yamaha - Retaıl - AG03 MK2 B 3 Kanal Mikser

24 bit / 192 kHz
+48 V phantom power switchable
Pad switch
DSP effects such as compressor, equaliser and reverb
60 mm fader
FX bypass (via optional footswitch)
iPad compatible with optional Camera Connection Kit (not included)
1 Mic/line input: XLR/jack combo connector
1 Hi-Z instrument input
2 Line inputs: 6.3 mm jack (input 2 switchable between Hi-Z and line)
2 Line outputs: 6.3 mm jack
2 Line outputs: RCA
Stereo headphone output: 6.3 mm jack
Footswitch connection
Headset connection: 2x 3.5 mm mini-jack (earphone and microphone)
AUX input: 3.5 mm mini-jack stereo
USB-C connection
Power supply via USB (5V, 500mA)
Dimensions: 129 x 63 x 202 mm
Weight: 0.8 kg
Colour: Black
Includes Steinberg Cubase AI

Sales Unit
1 piece(s)
Recording / Playback Channels
2x2
Number of Mic Inputs
1
Number of Line Inputs
4
Number of Line Outs
4
Headphone Outs
1
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
No
Word Clock
No
Max. sample rate (kHz)
192 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Width in mm
129 mm
Depth in mm
202 mm
Height in mm
63 mm
Connection Format
2x USB port Type C
