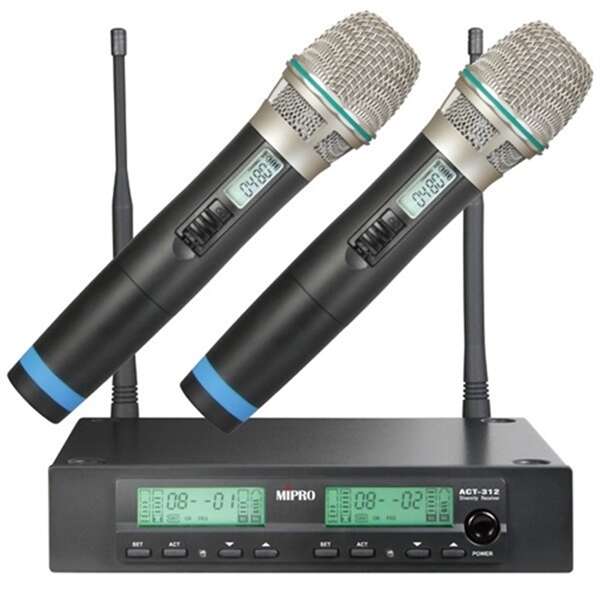

ACT-312 EL - Çift El Tipi Kablosuz Mikrofon Seti

Mipro ACT 312 El - Çift El Tipi Kablosuz Mikrofon Seti

112 Kanal UHF Telsiz Mikrofon ikili El

TEKNİK ÖZELLİKLER

Channel Dual

Chassis EIA-Standard 19" 1/2U

Receiving Mode Diversity

Frequency Range UHF 480~934MHz

Antenna Rear Panel. Detachable.

Preset Channels 112 preset channels.

Preset Channels Group 1-6: 8 compatible channels in each group.

Preset Channels Group 7-10: 16 compatible channels in each group.

Preset Channels Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.

Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)

Sensitivity 10dBμV, at S/N>80dB

S/N Ratio >106dB(A)

T.H.D. <0.5% @ 1kHz

Frequency Response 50Hz~18kHz, with high pass filter.

Squelch "PiloTone & NoiseLock" dual-squelch circuit.

Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.

Maximum Output Level 2-level Switch: Line & Mic

Power Supply External AC Adapter, 12~15V DC, 1A

Dimensions 210(W)×44(H)×180(D)mm

Weight Approx. 0.95kg / 2.1lbs
