515BSM Handheld Cardioid Dynamic Microphone

Shure 515BSM Handheld Cardioid Dynamic Microphone

The newest version of the 515 Series, the 515X, provides overall improved performance and 6dB more output. Ideal for a variety of sound reinforcement uses.

515SBG-18X / 515SBG-18X

Integrated flexible gooseneck and mounting flange allow for hands-free operation, ready to install, for use in paging and base station communications systems.

Built in push-to-talk button controls microphone circuit and relay or control circuit.

515SBGX

Easily mountable to gooseneck or fixed pipe where hands-free operation is necessary in paging and talkback systems.

Built in push-to-talk button controls both microphone circuit and relay or control circuit.

515BSLG24F / 515BSLG27F

Integrated flexible gooseneck allow for hands-free operation for use in communications, paging and talkback systems.

Built in slide switch controls both microphone circuit and relay or control circuit.

515BSLX

Easily mountable to gooseneck or fixed pipe allow for hands-free operation for use in communications, paging and talkback systems.

Built in slide switch controls both microphone circuit and relay or control circuit.

515SDX

Dual impedance microphone (Hi Z, Lo Z), selectable for application flexibility; schools, churches and meeting rooms.

Lockable On/Off switch.

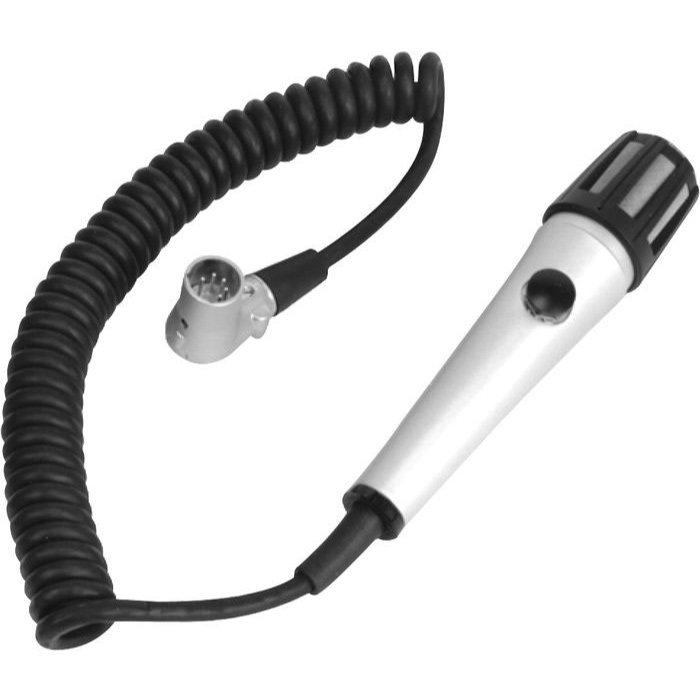

515BSM

Especially well suited for use in narration, public address and paging systems.

Built in slide switch controls both microphone circuit and relay or control circuit.

Features Rolled-off low-frequency response combined with a smooth high-frequency rise for clear and intelligible voice pickup Symmetrical cardioid pickup pattern minimizes feedback Neodymium magnet for high signal-to-noise ratio Heavy-duty zinc, die-cast, locking, metal grille protects cartridge and reduces wear Shock-mounted cartridge for quiet operation and low stand/handling noise Field serviceable and backed by the Shure 2 year warranty

Specifications Type: Dynamic (moving coil) Frequency Response: 80 to 15,000 Hz Polar Pattern: Cardioid (unidirectional). Effective rejection of sound at rear of microphone is uniform at all frequencies, while front pickup characteristics are uniform about axis Impedance: 150 ohms rated (180 ohms actual) Output Level (at 1,000 Hz) Open Circuit Voltage*: 57.0 dBV/Pa* (0.14 mV) *1 Pa=94 dB SPL Switch: Built-in, leaf-type, non-locking, push-to-talk Shock Mount: Internal rubber vibration isolator Cable: Highly durable, retractable cable with effective hum shielding, four conductors (two shielded), neoprene jacketed with 5-pin connector Length: 330 mm (13 in.) retracted 1.83 m (6 ft) extended Case: Silver finish die casting with black enamel diecast grille and stainless steel screen Dimensions: See User Guide
