Shure - 545SD-LC Kardioid Mikrofon

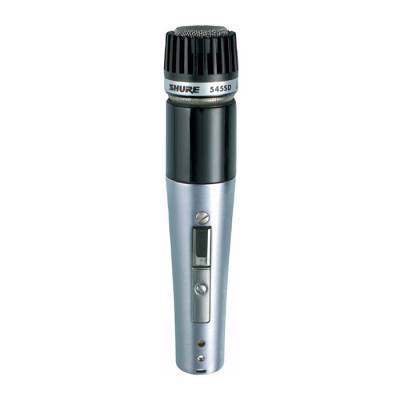

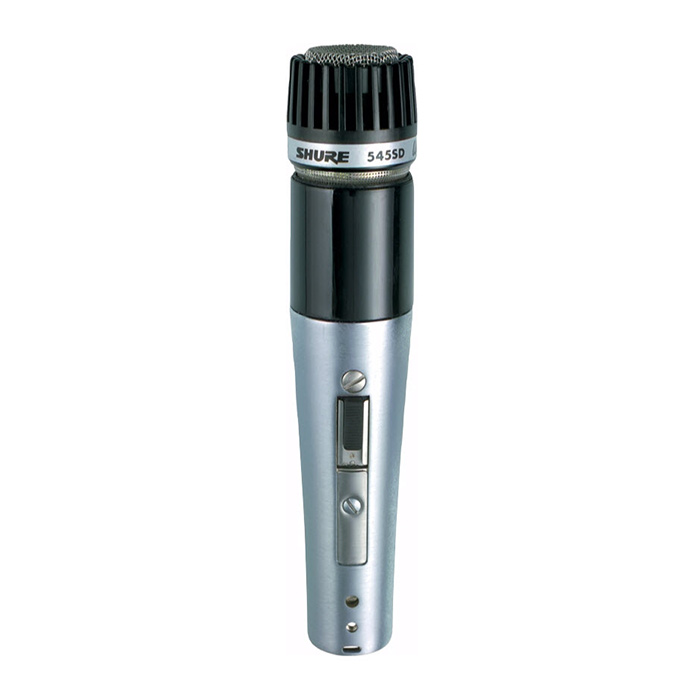

Shure 545SD-LC Kardioid Mikrofon

The predecessor to the SM57, The 545SD Classic Unidyne Instrument Microphone is a dual-Impedance, Unidirectional, Dynamic Microphone.

Shipped connected for low-Impedance operation, the 545SD features a silent magnetic reed on/off switch with lock-on option. A favorite for instrument pickup and recording, the 545SD can also be used on lecterns in Public Address systems.

Shure 545SD-LC Features:

Exceptionally uniform Cardioid pattern minimizes Feedback

Selectable dual-Impedance operation

Silent magnetic reed on/off switch with lock option

Cardioid, Dynamic

Frequency Response: 50 to 15,000 ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Hz

Shure 545SD-LC Specifications:

Type: Dynamic

Frequency Response: 50 to 15,000 ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Hz

Some microphone designs combine several principles in creating the desired polar pattern. This ranges from shielding (meaning diffraction/dissipation/absorption) by the housing itself to electronically combining dual membranes.] cssheader=[boxoverheader] cssbody=[boxoverbody]">Polar Pattern: Cardioid (Unidirectional)--uniform with Frequency, symmetrical about axis

Impedance: Dual. Microphone rating Impedance is 150 Ohms (250 Ohms actual) for connection to Microphone inputs rated at 19 to 300 Ohms and "High" for connection to high-Impedance Microphone inputs. Wired for Low Impedance as supplied. To change Impedance, see sections on lmpedance Selection and Connections in User Guide.

Output Level (at 1,000 ] cssheader=[boxoverheader] cssbody=[boxoverbody]">Hz)

LOW: Open Circuit Voltage* -58.0 dB (1.3 mV)

HIGH: Open Circuit Voltage* -35.0 dB (17.6 mV)

*0 dB = 1 Volt per Pascal (1 PA = 94 dB SPL)

Polarity: Positive pressure on Diaphragm produces positive Voltage on pin 2 (with respect to pin 3).

Switch: Built-in magnetic reed on/off switch with lockplate.

Cartridge Shock Mount: Internal rubber vibration-isolator Swivel Adapter

Positive action, adjustable through 90 degrees from vertical to horizontal, permits easy removal for handheld use, suitable for mounting on stand with 5/8"- 27 thread

Case: Chrome-plated die casting with ARMO-DUR® grille and Stainless Steel screen

Dimensions: See User Guide

Net Weight (less cable): 255 grams (9 oz)
